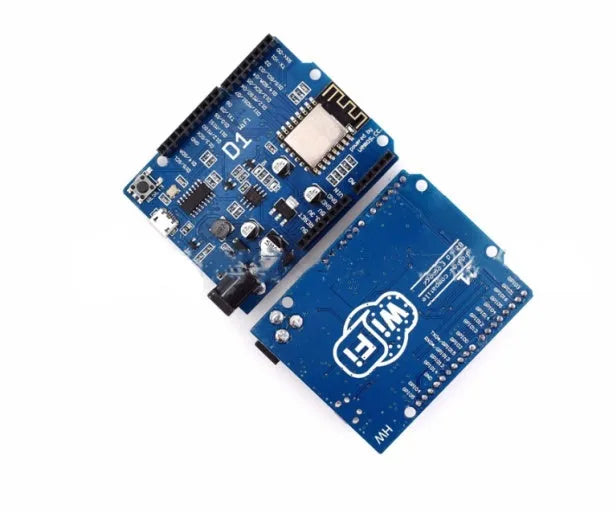

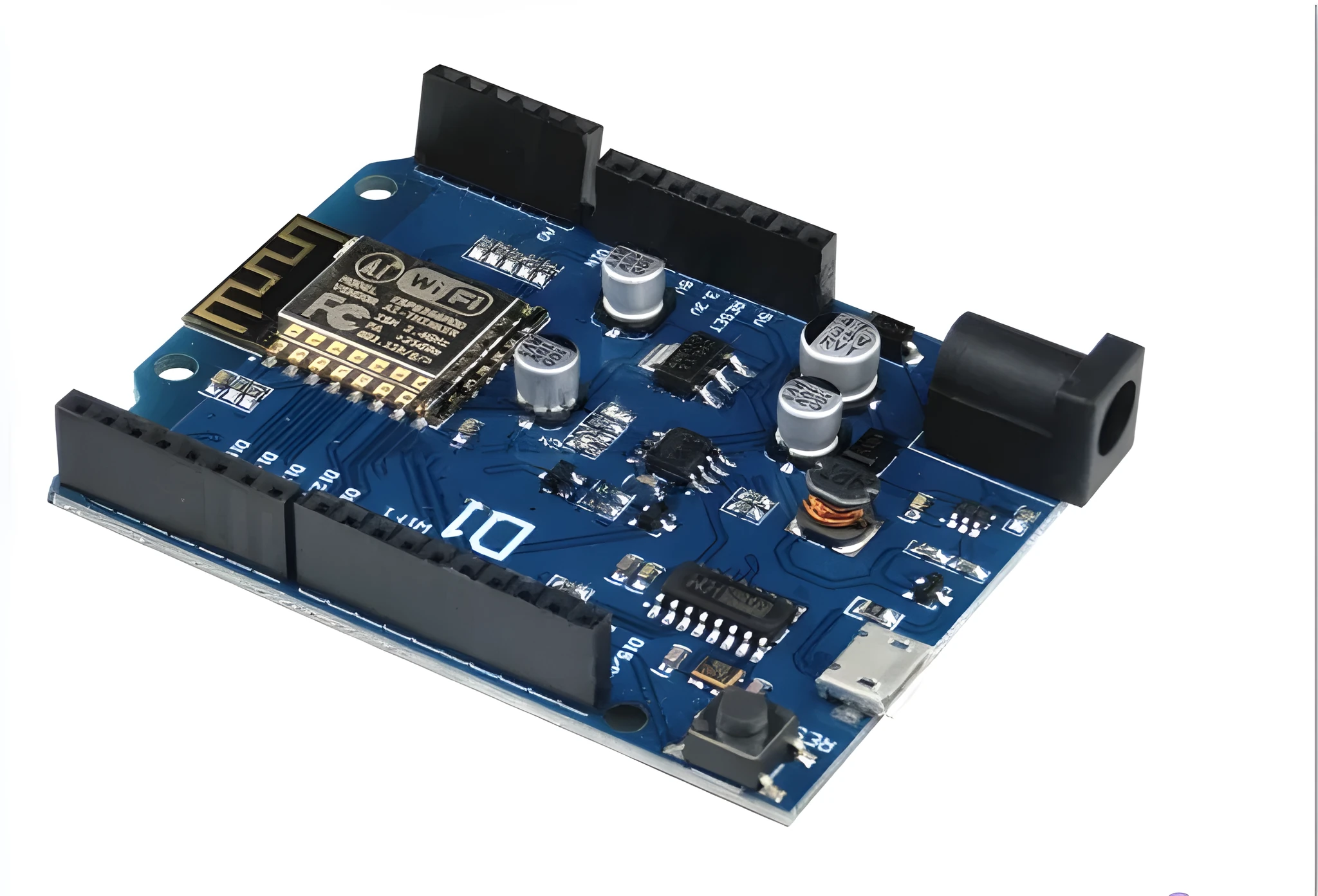

Arduino Compatible ESP8266EX WIFI Development Board with Onboard 5V Power Supply and Wireless Uploads

This WIFI development board provides microcontroller enthusiasts and IoT developers with a practical hardware platform centred on the popular ESP-8266EX chip. Designed for compatibility with the Arduino integrated development environment (IDE), it reduces the learning curve for those familiar with Arduino programming while adding WIFI connectivity and power management features. The board operates similarly to an Arduino UNO once the necessary hardware package is installed, making it accessible for educational projects, prototyping, and functional IoT devices. Its integrated 5-volt power supply allows operation without constant USB connection, while OTA support enables remote code deployment.

Features and Construction

The board's functionality stems from its ESP-8266EX foundation and supporting circuitry designed for developer convenience. It bridges the gap between simple microcontroller programming and connected device development by incorporating essential features directly onto the PCB.

Material and Build

The development board consists of standard electronic components soldered to a printed circuit board (PCB), which provides the electrical pathways between the microcontroller, power regulation circuitry, pin headers, and supporting elements. The ESP-8266EX chip serves as the central processor with integrated WIFI capabilities. The construction focuses on providing a stable platform for prototyping rather than final product enclosure, with exposed pins and components typical of development boards.

Size and Practical Fit

While specific dimensions are not provided, the board's layout includes standard 2.54mm pitch pin headers for the 11 I/O pins and ADC pin, compatible with common breadboards and jumper wires. The inclusion of an onboard switching power supply reduces the need for external voltage regulators, simplifying project setups. The physical form is typical of development boards, designed for benchtop use during prototyping phases before potential integration into custom enclosures.

Uses and Placement

This board supports a range of applications from educational exercises to functional connected devices, leveraging its WIFI connectivity and familiar development environment.

Event or Professional Use

For workshops, hackathons, or educational settings, the board's Arduino compatibility allows instructors to utilise existing tutorials and code examples with the addition of WIFI features. Its OTA capability enables remote management of deployed demo units or installations. Professionals can use it for rapid prototyping of IoT concepts, sensor networks, or smart device controllers before designing custom circuit boards.

Everyday Home Use

DIY enthusiasts can create home automation projects such as smart switches, environmental monitors, or appliance controllers. The onboard power supply allows projects to run independently from a computer once programmed. Hobbyists can develop connected gadgets, weather stations, or remote-controlled devices using the 11 available I/O pins to interface with sensors, relays, and displays commonly available for Arduino projects.

Benefits and Buying Value

The board's value lies in combining several convenient features into a single platform, reducing the additional components typically needed for WIFI-enabled Arduino projects.

Reuse and Low Maintenance

The development board can be reprogrammed repeatedly for different projects using the Arduino IDE. The OTA wireless update feature allows deployed devices to receive firmware upgrades without physical connection, supporting long-term use in fixed installations. The robust onboard power supply accepts inputs up to 24V, providing flexibility in power source selection.

Why Choose This Product

This board is suitable for those seeking an ESP8266-based platform that works with the Arduino toolchain without requiring deep knowledge of the underlying SDK. It eliminates the need for a separate USB power source or voltage regulator in many projects. The combination of adequate I/O pins, ADC input, and OTA support covers the core requirements for many introductory to intermediate IoT applications, providing a balanced feature set for its intended use cases.
