BMW OBD2 20-Pin to 16-Pin Diagnostic Adapter Cable for Vehicle Engine Diagnostics

This specialist adapter cable is designed for a single, clear purpose: to connect contemporary On-Board Diagnostics (OBD2) scan tools, which use a standardised 16-pin connector, to older BMW vehicles that utilise a manufacturer-specific 20-pin diagnostic port. Found under the bonnet rather than inside the cabin, this 20-pin port is common on many BMW models from the 1990s and early 2000s. Without this cable, owners and mechanics cannot easily perform essential engine diagnostics, read fault codes, or monitor live sensor data on these vehicles using widely available OBD2 scanners. The cable provides a direct, physical interface, translating the pin layout to allow communication between the tool and the car's electronic control units (ECUs), all while operating within a specified 12-volt system and temperature range.

Features and Construction

This cable serves as a dedicated bridge between two distinct automotive diagnostic standards. Its construction is focused solely on establishing a reliable electrical connection, with no integrated electronics that could interpret or modify data signals.

Material and Build

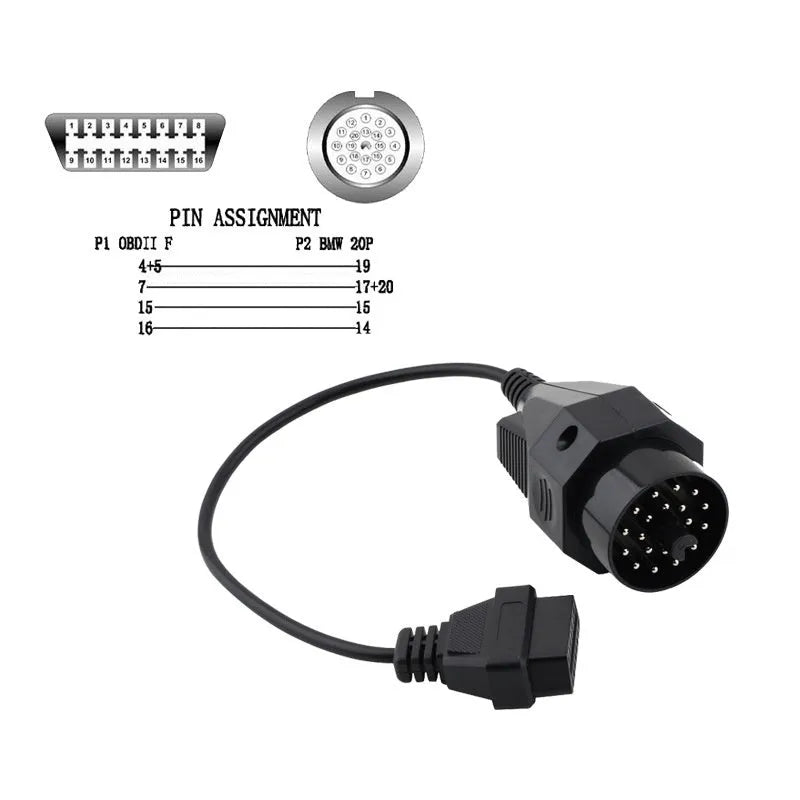

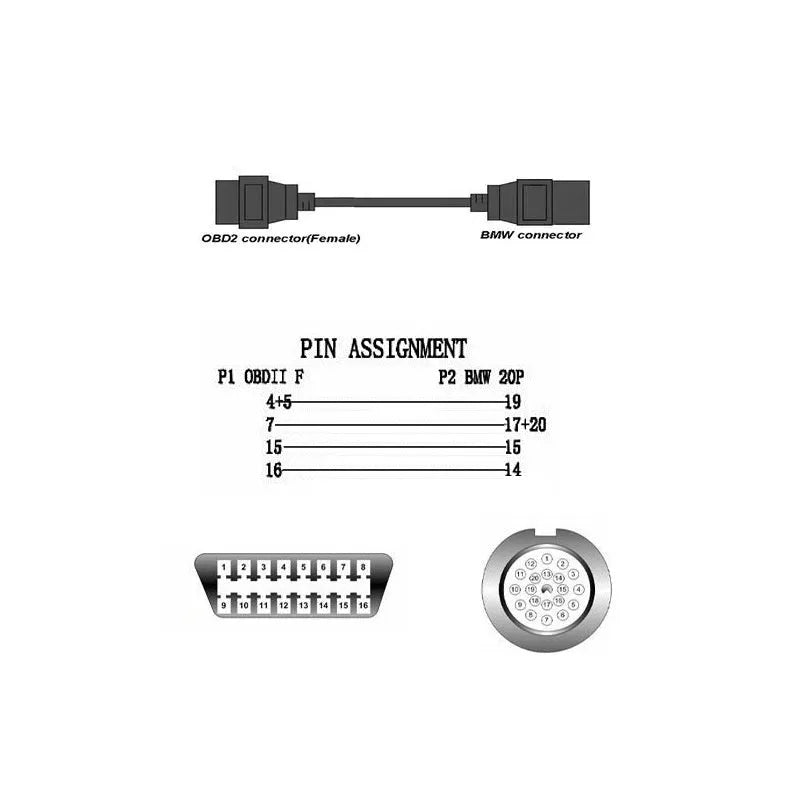

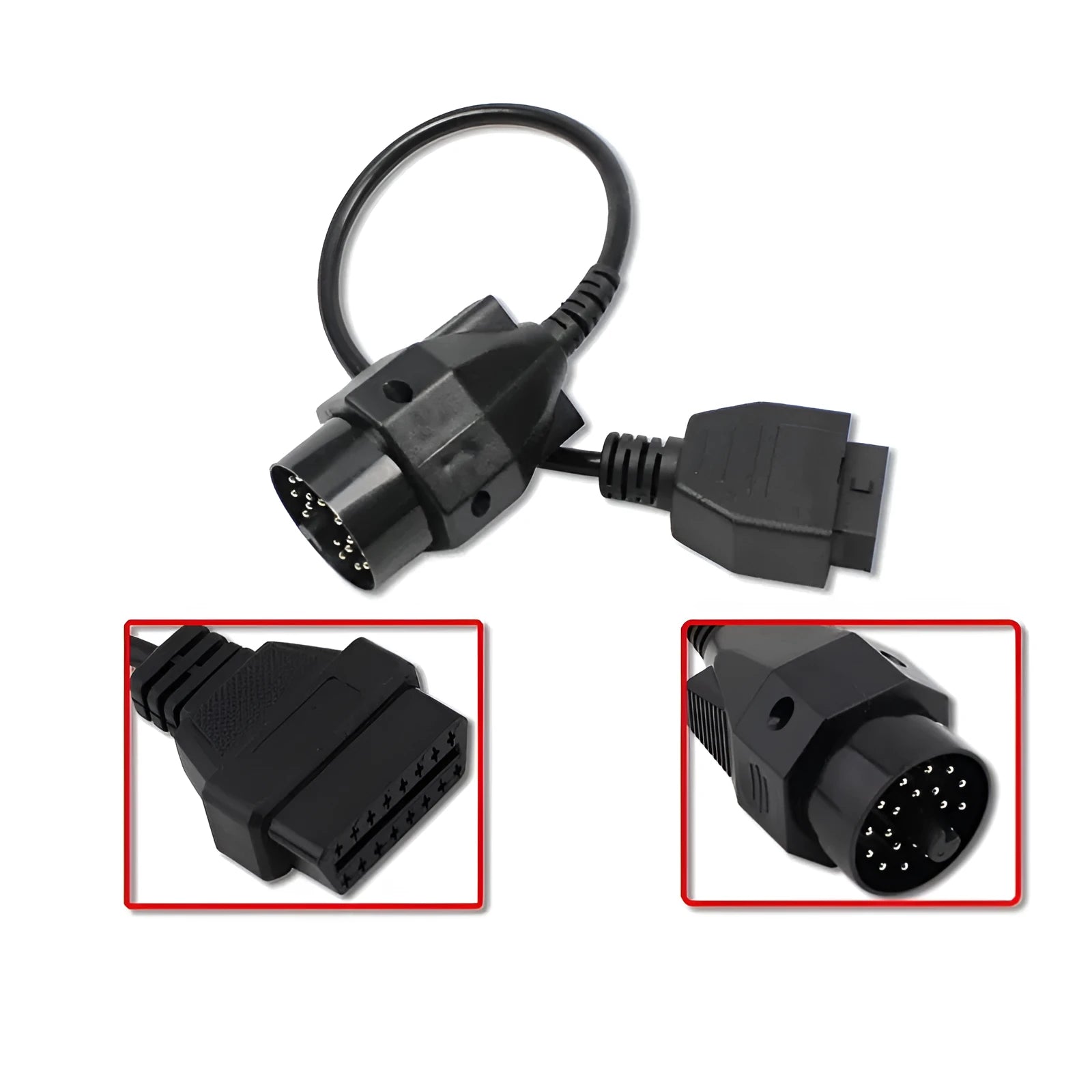

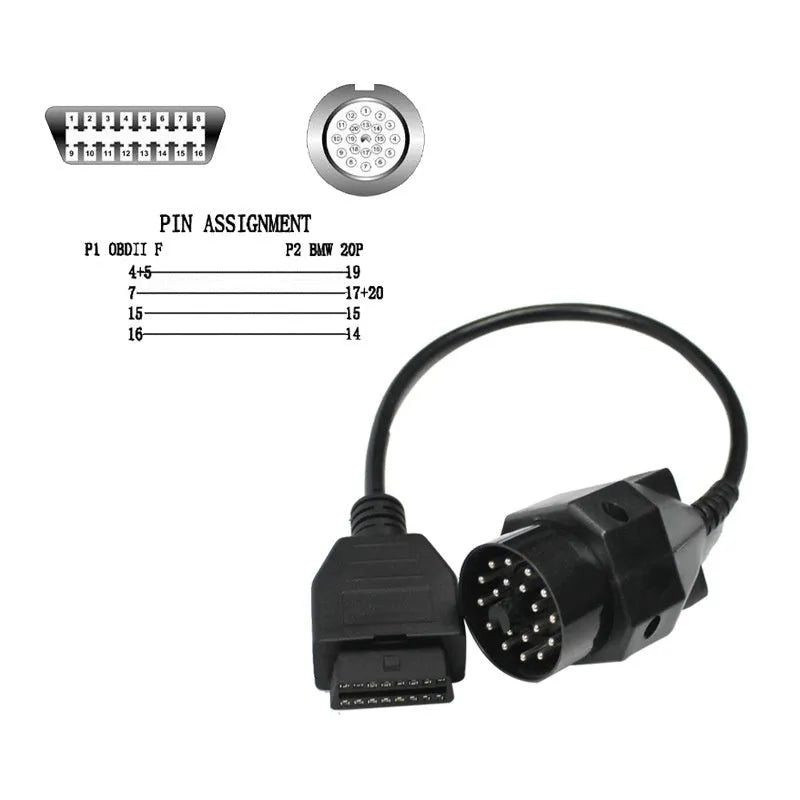

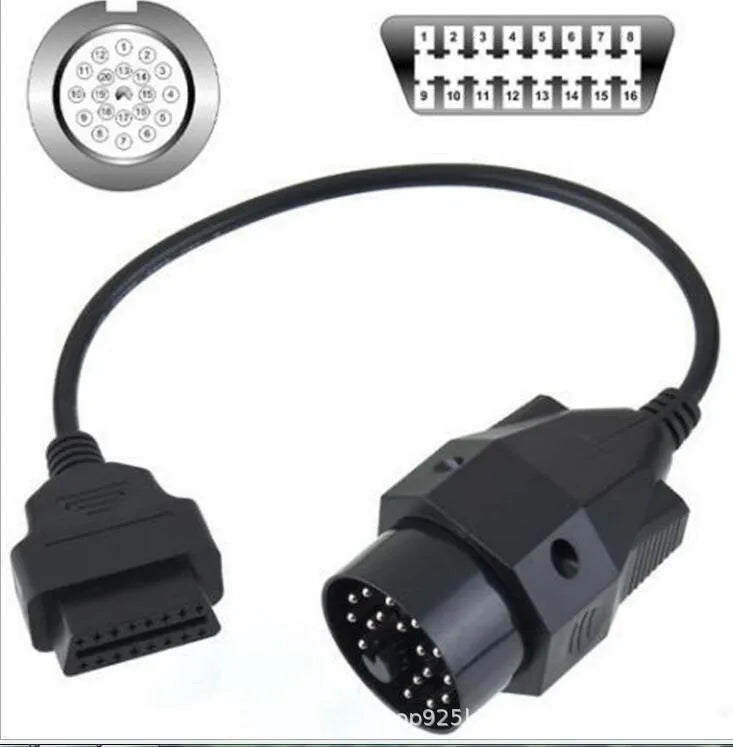

The adapter consists of a length of automotive-grade cable terminating in two key connectors. One end features a BMW-specific 20-pin male connector, designed to match the physical port found under the bonnet of applicable models. The other end is fitted with a standardised 16-pin female OBD2 connector (J1962), which accepts the plug from virtually any modern OBD2 scanner or code reader. The internal wiring maps the necessary signal and power pins from one standard to the other. The source text confirms its rating for an operating temperature of up to 45 degrees Celsius, ensuring it can be used in typical engine bay environments.

Size and Practical Fit

While the precise cable length is not specified, its design facilitates connection between an under-bonnet port and a diagnostic tool that may be resting nearby. The 12-volt system compatibility is explicitly stated, aligning with standard passenger vehicle electrical systems. It is crucial to verify the vehicle's specific model compatibility, as the source text broadly states 'BMW' without providing a detailed list of model years or chassis codes that are confirmed to work.

Uses and Placement

The primary application for this adapter is in automotive diagnostics and repair scenarios. It unlocks the functionality of a wide range of OBD2 tools for a specific subset of vehicles, moving beyond basic code readers to more advanced bidirectional scanners.

Event or Professional Use

For professional mechanics, garage workshops, and mobile technicians specialising in European or BMW vehicles, this cable is a necessary piece of workshop equipment. It allows quick code reading and data streaming for diagnosis on older BMWs that enter the shop, improving efficiency by using the same OBD2 scanner across more vehicles. It is also valuable for pre-purchase inspections, MOT test preparation, or troubleshooting intermittent faults where live data monitoring is required.

Everyday Home Use

For the knowledgeable DIY car enthusiast or owner of an older BMW, this adapter enables the use of affordable consumer-grade OBD2 code readers. This can help identify the cause of a check engine light, clear fault codes after a repair, or monitor basic parameters, potentially saving on diagnostic fees and providing greater insight into the vehicle's condition between professional services.

Benefits and Buying Value

The value of this product lies in its specificity and the practical problem it solves. It is not a multi-function tool but a targeted accessory that restores compatibility.

Reuse and Low Maintenance

The cable has no consumable parts and requires no software, batteries, or ongoing maintenance. Once purchased, it can be reused indefinitely across any compatible BMW vehicle, representing a long-term addition to a diagnostic toolkit. Its passive design means there is nothing to configure or update.

Why Choose This Product

This product addresses a well-known compatibility gap in the BMW aftermarket. It provides a verified physical solution (20-pin to 16-pin) for a documented need, with stated operational limits (12V, 45°C). For anyone needing to perform OBD2 diagnostics on an applicable BMW with a 20-pin port, this adapter is typically the only way to utilise the vast majority of modern scan tools available on the market.
