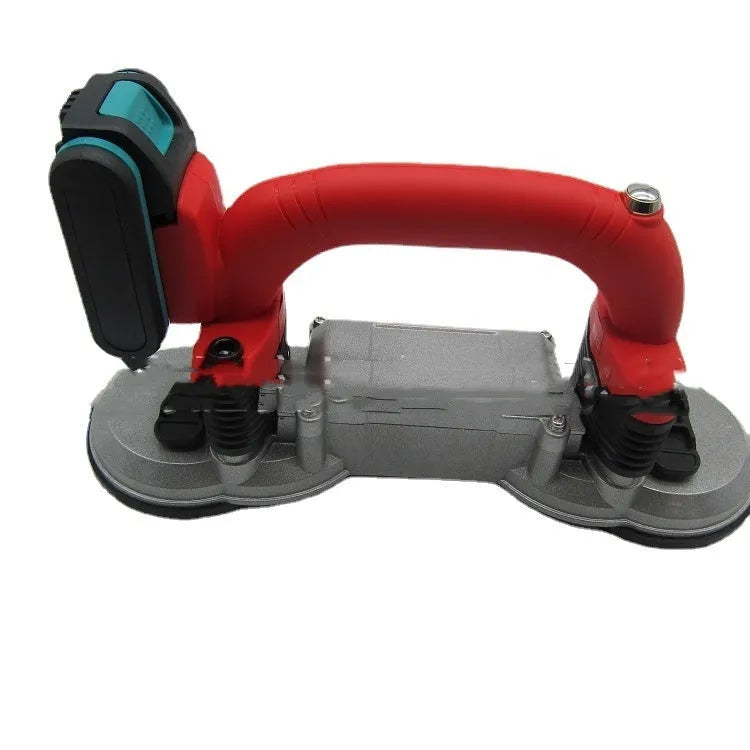

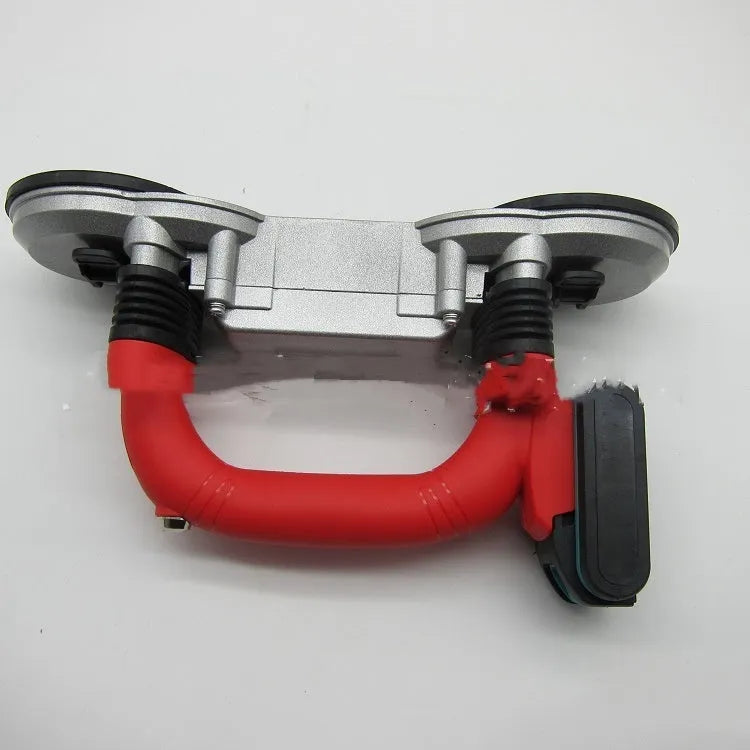

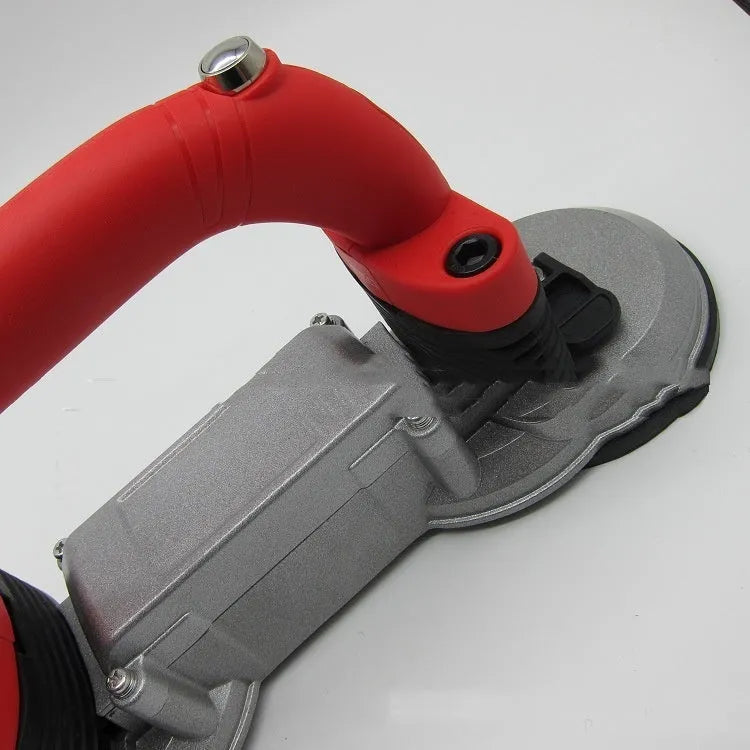

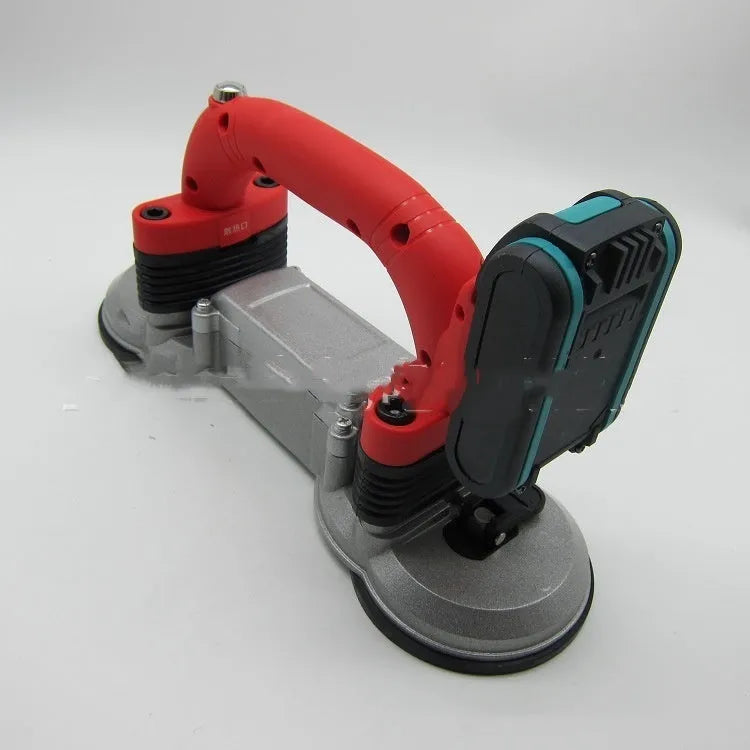

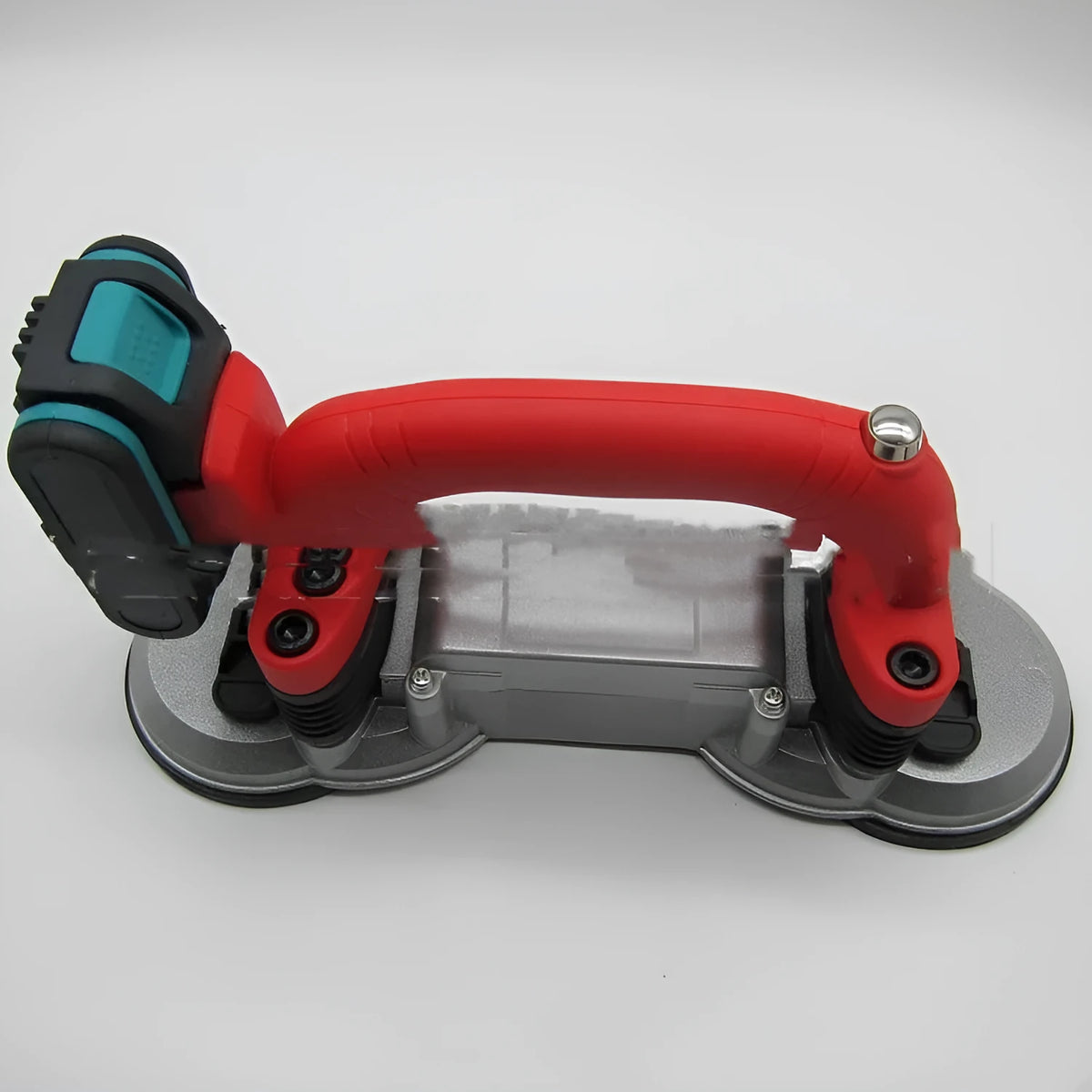

Ceramic Tile Tiling Machine 2003B – 12V Lithium Battery with 190W Output and 12000R/min Vibration

When laying tiles and bricks, physical effort and inconsistent results often slow down the job. This ceramic tile tiling machine with high frequency vibration tackles those problems by providing a steady, repeatable placement method. Powered by a 12V lithium battery, it operates cordlessly so you can move freely across the worksite. The combination of a 190W motor and 12000R/min shock frequency ensures that each tile or brick is firmly settled into the adhesive bed, reducing the risk of voids and uneven surfaces.

Features and Construction

The 2003B model is built for practical, on-site use. Its key specifications have been selected to balance power, portability, and suction capacity. Below we break down the design choices that make this machine effective for ceramic, tile, and brick-laying tasks.

Material and Build

The machine uses a 12V lithium battery as its power source, which allows cordless operation. The 190W output motor drives a high frequency vibration mechanism rated at 12000R/min. This vibration helps the tile to settle evenly into the mortar or adhesive, reducing manual tapping and adjustment. The suction plate has a diameter of 137MM, which provides contact coverage suitable for standard ceramic tiles and bricks.

Size and Practical Fit

The machine is compact enough to handle one-handed tile placement in most scenarios. The 137MM suction diameter covers a typical tile face without overhang. The 110KG suction loading rating indicates that the vacuum hold is strong enough to lift and position heavy tiles or bricks during installation. The voltage specification is 12V, and the model is wired for 110V US power, so an appropriate charger should be used with US outlets.

Uses and Placement

This machine is designed for laying ceramic tiles and bricks in both professional and self-build contexts. The high frequency vibration ensures that each unit is properly seated, while the cordless battery allows work in areas without immediate access to mains power.

Event or Professional Use

For professional tilers and bricklayers, the 2003B machine speeds up repetitive placement tasks. The consistent 12000R/min frequency means less variation in bed thickness and better adhesion outcomes. The 110KG suction loading means even denser tiles can be picked up and positioned without dropping. The 12V lithium battery runs for a useful shift on a single charge, reducing downtime for recharging.

Everyday Home Use

DIY home renovators will find this machine useful for bathroom, kitchen, or patio projects. The cordless design eliminates trailing cables, and the high frequency vibration helps produce a professional-looking finish without the need for heavy tapping tools. The 137MM suction diameter fits most standard wall and floor tiles commonly used in domestic settings.

Benefits and Buying Value

Investing in a dedicated tile vibration machine can transform a slow, physically demanding job into a more efficient process. The key benefits centre on reduced physical effort, consistent results, and the convenience of battery power.

Reuse and Low Maintenance

The machine requires minimal maintenance beyond keeping the battery charged and the suction plate clean. The lithium battery is rechargeable, meaning no ongoing cost for disposables. The vibration mechanism is sealed and designed for repeated use on site. No specialist cleaning agents are needed – wiping the suction plate with a damp cloth after use keeps it ready for the next job.

Why Choose This Product

If you need to lay ceramic tiles or bricks regularly, this machine’s 190W motor, 12000R/min frequency, and 110KG suction provide a practical, repeatable solution. The 12V lithium battery adds cordless freedom, and the 137MM suction diameter suits a wide range of standard tile sizes. The model 2003B is available in 110V US configuration, so it fits North American power systems when paired with the correct charger.
