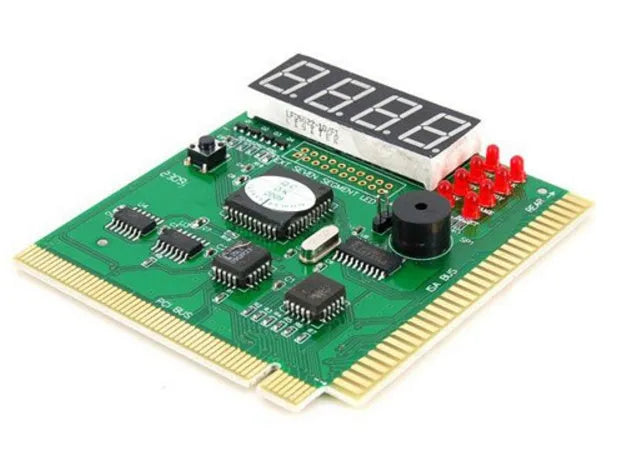

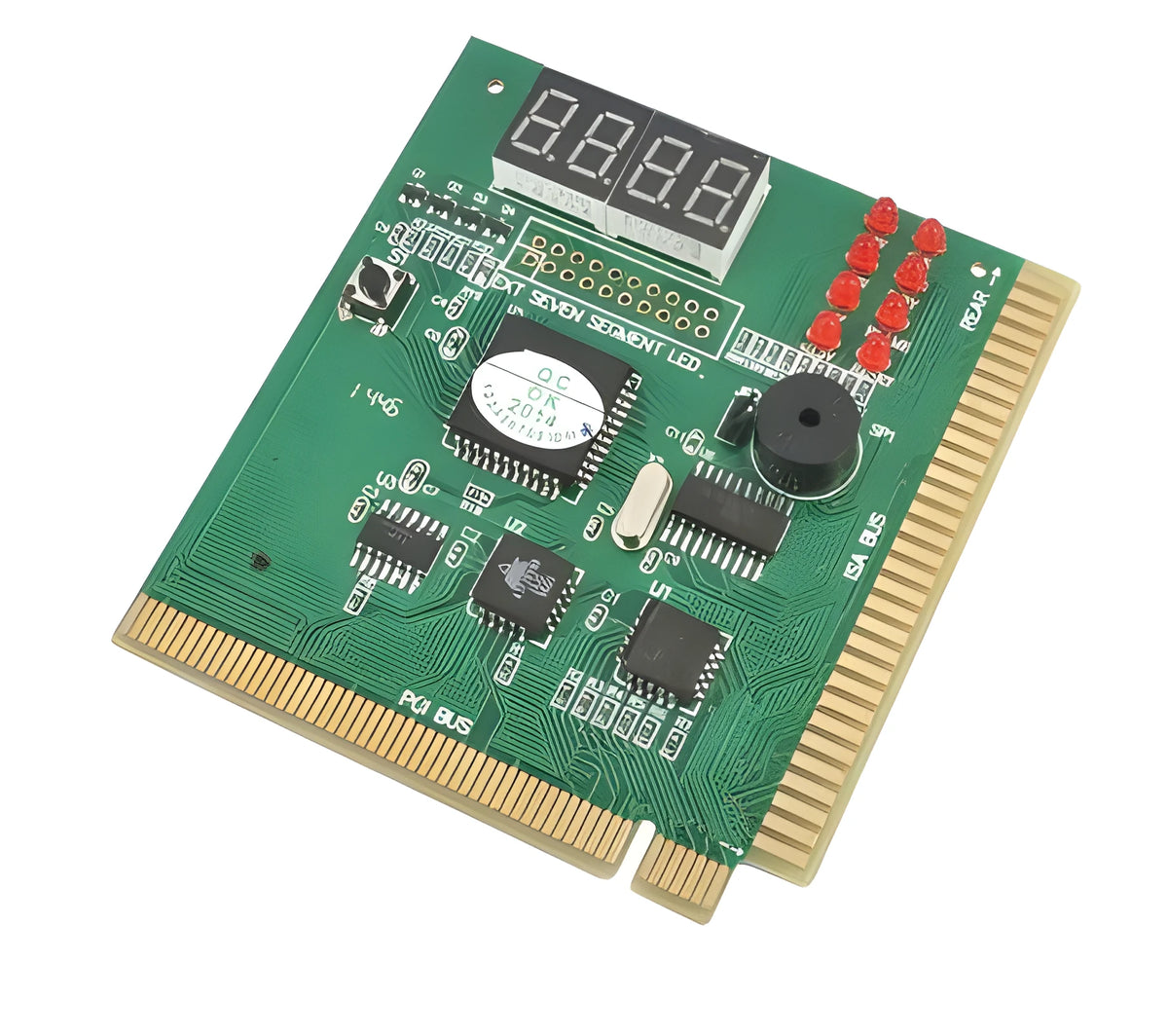

Four-digit Computer Motherboard Fault Diagnosis Card for PCI Slot Troubleshooting with Signal Lamp and Buzzer 8x9cm

When a desktop computer refuses to boot or behaves erratically, pinpointing the faulty component can be frustrating without the right tool. This four-digit motherboard fault diagnosis card plugs directly into a PCI slot and gives you real-time feedback through a digital tube, signal lamps, and an audible buzzer. Designed for technicians and enthusiasts, it helps you read POST codes and identify hardware issues quickly. The compact 8 by 9 cm card fits in any repair kit and pairs with standard PC motherboards equipped with a PCI interface.

Features and Construction

This test card combines visual and audible indicators to make motherboard troubleshooting straightforward. Its lean build focuses on core diagnostic functions without unnecessary extras.

Four-Digit Digital Tube

The card uses a four-digit LED digital tube to display fault codes, giving you numeric readouts of the motherboard's POST (Power-On Self-Test) progress. Each code corresponds to a specific check or error, allowing you to trace issues to individual components such as RAM, CPU, or graphics.

Signal Lamp and Buzzer

A set of signal lamps provide a quick visual status of the motherboard operation. The integrated buzzer adds an audible alert when a fault is detected, so you don't need to watch the card constantly. Together, these indicators make diagnosis accessible even in lower-light conditions.

Uses and Placement

This diagnosis card is suited for both professional repair stations and home troubleshooting. Its PCI interface ensures compatibility with a wide range of desktop motherboards.

Professional Repair Use

For computer repair shops, the card accelerates fault finding by giving immediate code feedback. Technicians can test multiple boards in quick succession without needing a separate diagnostic system. The compact size means it stores easily in a drawer or case.

DIY Enthusiasts and Home Use

Home users building or repairing their own PCs benefit from the card's simplicity. Insert it into an empty PCI slot, power on, and observe the codes to determine whether a new CPU, RAM, or other part is needed. No complex software setup required.

Benefits and Buying Value

This tool replaces guesswork with clear data, saving time and reducing the risk of misdiagnosis. Its physical design supports repeated use across multiple boards.

Reusability

Unlike software-only diagnostic tools, this hardware card works across different motherboards as long as they have a PCI slot. You can use it repeatedly without per-board licensing or updates, making it a one-time investment for ongoing troubleshooting.

Practical Value

At just 50 grammes and 8 by 9 cm, the card is easy to transport between workstations. The PE bag keeps it safe from dust and static. For anyone who regularly diagnoses PC faults, this card provides a straightforward, code-based method to identify problems efficiently.
