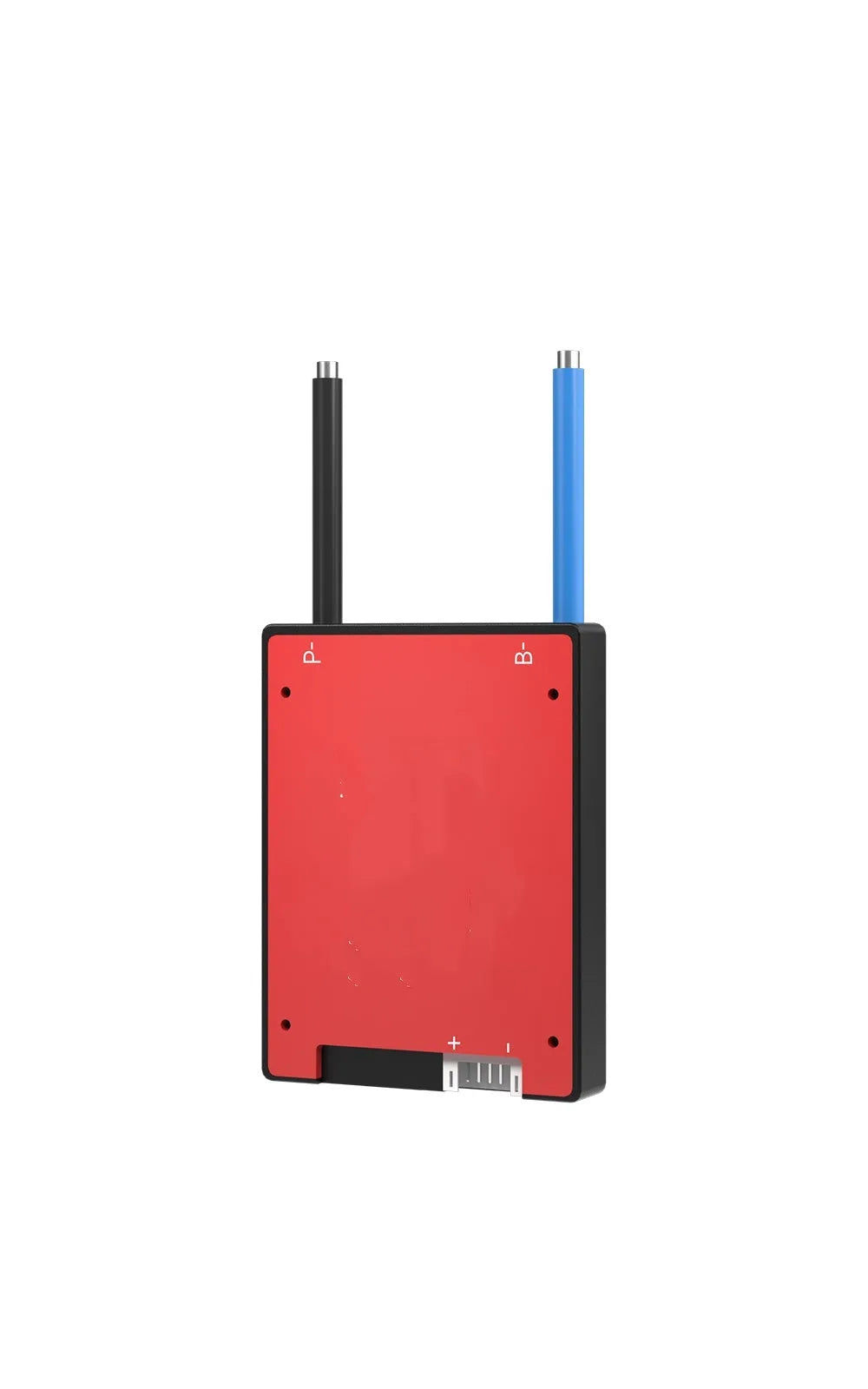

Dali 12V Lithium Iron Phosphate Battery Protection Board for 4-Cell Series Packs with Balancing

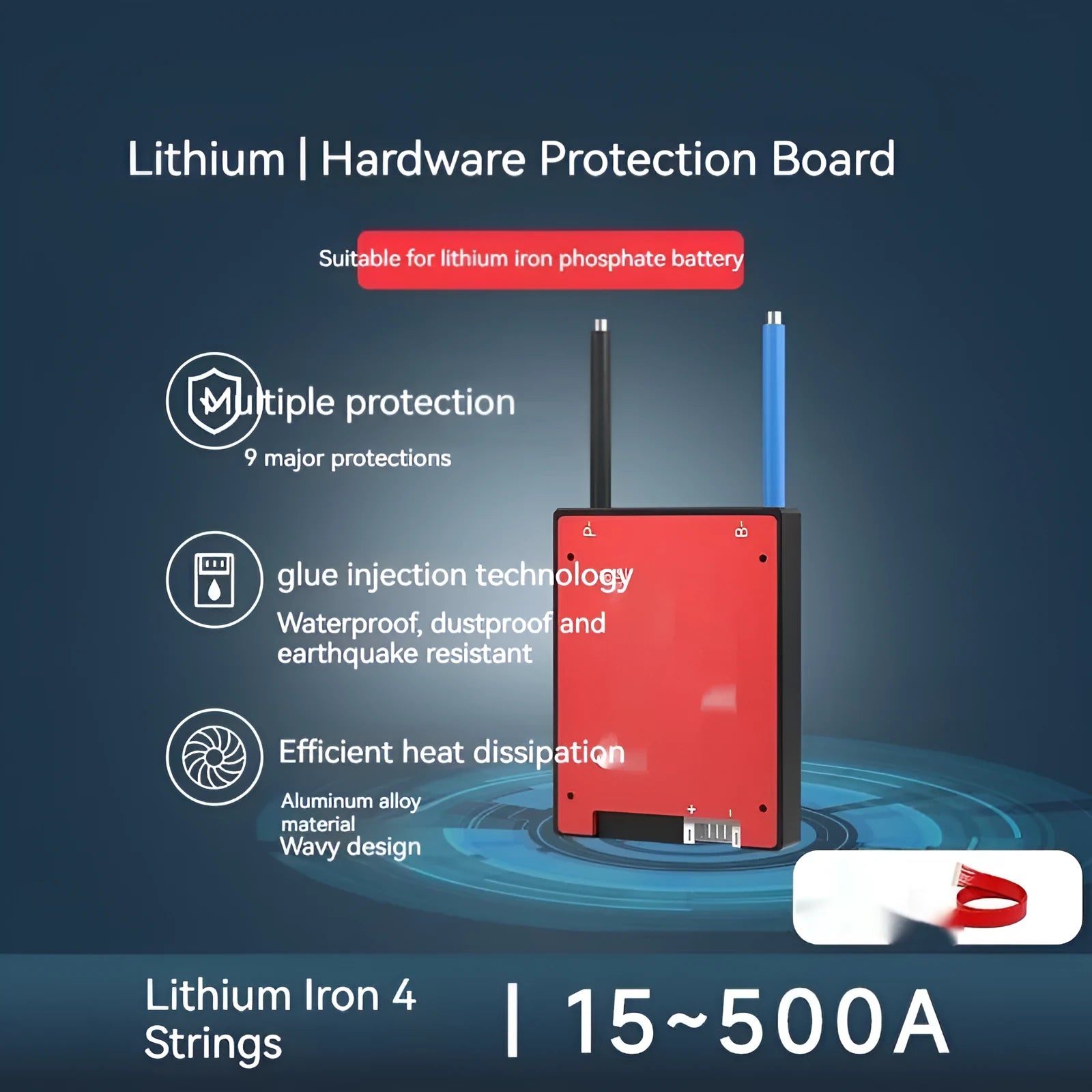

This Dali battery protection board, often termed a Battery Management System (BMS), is engineered specifically for lithium iron phosphate (LiFePO4) chemistry in a four-cell series (4S) configuration, delivering a protected 12V output. It serves as a critical safety and longevity component for DIY battery packs or integrated systems, preventing common failure modes like overcharging, excessive discharge, and short circuits. The product range is notably extensive, offering a selection of continuous discharge current ratings to match various power demands, from modest 15A applications up to high-power 500A requirements. A key feature across all models is the inclusion of active cell balancing, which works to correct minor voltage discrepancies between the individual cells, a process essential for maximising the capacity and cycle life of a series-connected LiFePO4 pack. For scenarios involving prolonged high-current draw, several models within the range are offered with an added integrated cooling fan, an option that aids in maintaining optimal operating temperatures for the board's internal electronics.

Features and Construction

The board's design centres on managing a 4S LiFePO4 battery pack, a common configuration for 12V systems. Its construction is based on a printed circuit board (PCB) populated with the necessary components to monitor cell voltages, control charge and discharge paths, and execute balancing functions.

Material and Build

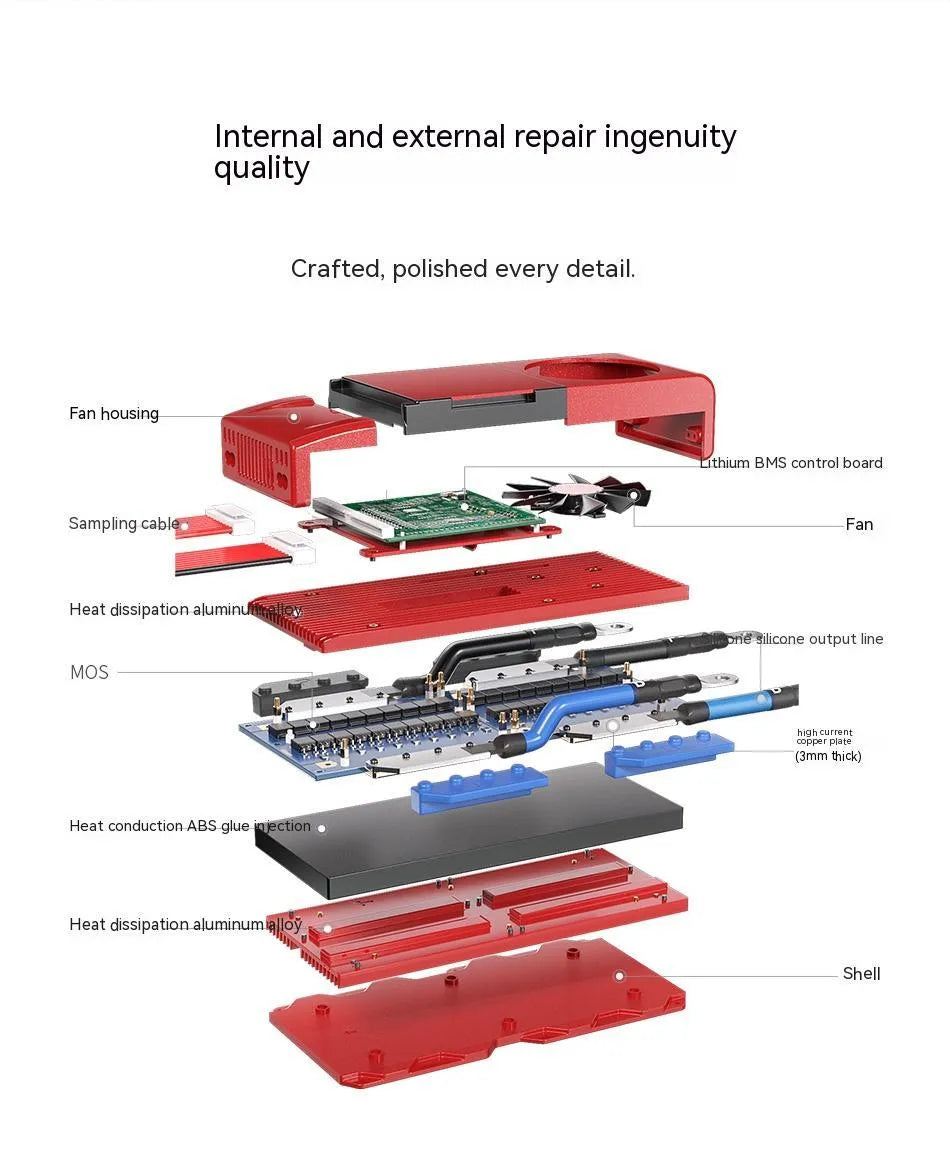

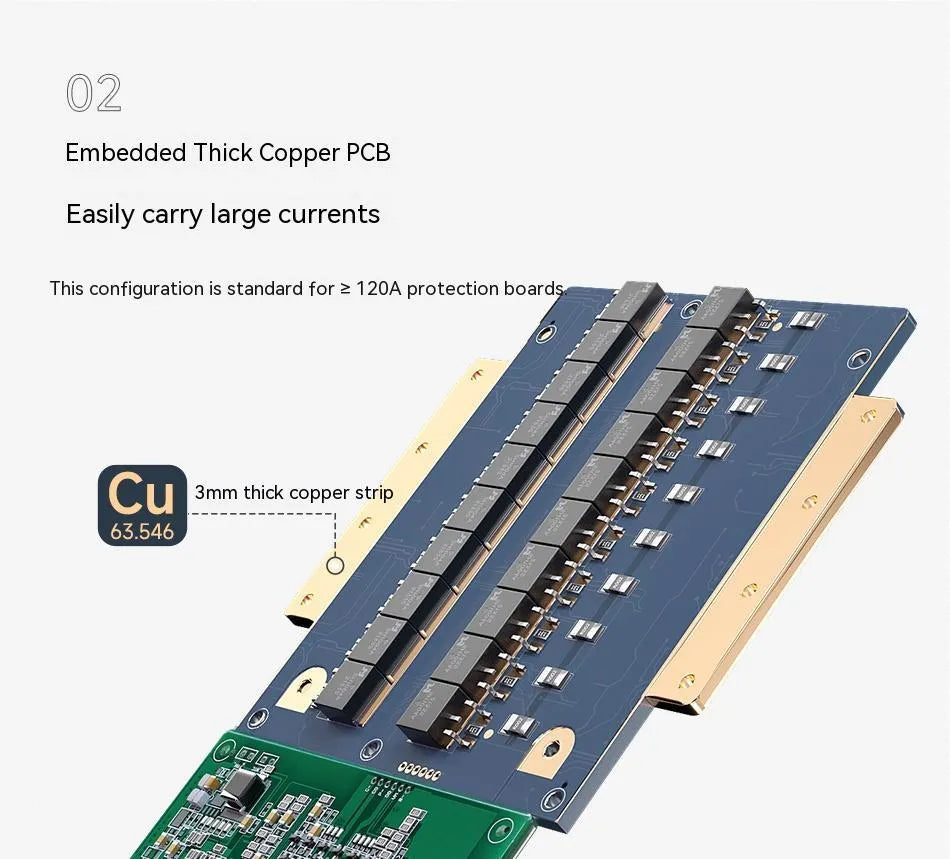

The core assembly is a standard PCB hosting the control circuitry, power MOSFETs for switching high currents, and the balancing network. For models designated with a fan, this consists of an additional fan unit attached to the board to provide active airflow. The build is focused on functionality for integration into a battery pack enclosure or electrical system, rather than standalone consumer aesthetics. The materials are chosen for their electrical properties and reliability in managing battery power.

Size and Practical Fit

While exact dimensional data is not specified, a battery protection board of this type is typically compact, designed to be mounted within or adjacent to the battery pack it protects. The physical size will logically scale with the current rating; higher-current models (100A and above) and those with fans will have a larger footprint to accommodate larger MOSFETs, heavier traces, and the fan assembly. Users should account for this when planning the layout of their battery box or installation space, ensuring there is adequate room for the board itself and for airflow around it, particularly for fan-cooled variants.

Uses and Placement

This protection board is a fundamental component for anyone building or maintaining a 12V LiFePO4 power source. Its placement is always in-line, electrically situated between the battery cells and the external world.

Event or Professional Use

In professional, commercial, or high-demand event settings, the higher-current models (150A to 500A) with fan options are relevant. These could be used in substantial off-grid solar installations powering a small workshop, in electric vehicle conversions where a 12V auxiliary battery is required, or in mobile power stations for film and audio equipment. The robust current handling and thermal management from the fan help ensure reliability during continuous, high-load operation, which is often a requirement in these professional contexts.

Everyday Home Use

For everyday home applications, the lower to mid-range current models (15A to 100A) are typically suitable. Common uses include building a replacement battery for a cordless power tool station, creating a backup power bank for home networking equipment, or constructing a solar-charged battery for garden lighting. The balancing function is equally important here, as it helps maintain the health of cheaper, readily available LiFePO4 cells over many charge cycles, making the DIY project more successful and longer-lasting.

Benefits and Buying Value

The value of this board lies in its targeted functionality, configurability, and the essential protection it provides to a potentially expensive battery investment.

Reuse and Low Maintenance

Once installed, the board operates autonomously, requiring no regular maintenance. Its balancing function works during the charging cycle, passively maintaining cell health. The solid-state design with no moving parts (except for the optional fan) contributes to long-term reliability. This set-and-forget operation is a key benefit, reducing the need for manual battery pack maintenance and monitoring.

Why Choose This Product

Choosing this Dali board comes down to matching its specifications to a clear need: a 4S, 12V LiFePO4 pack. The wide range of current ratings allows precise selection without overpaying for excessive capacity. The option for a fan on high-power models addresses a real thermal challenge. Furthermore, the inclusion of balancing as a standard feature, not an extra-cost add-on, adds immediate value by promoting better battery performance and longevity from the outset, which can offset the initial cost of the BMS over the life of the battery pack.
