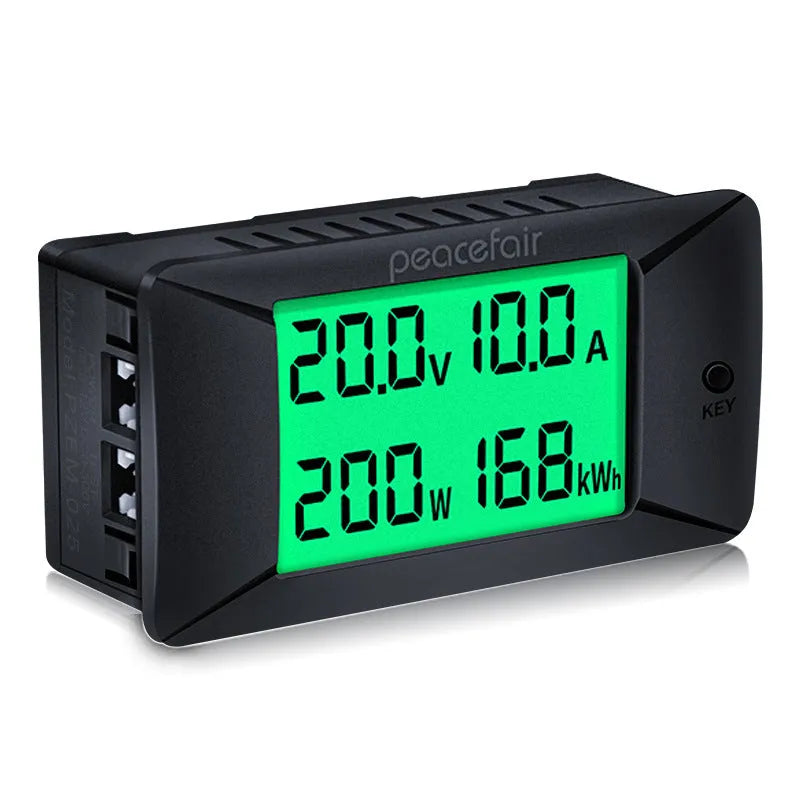

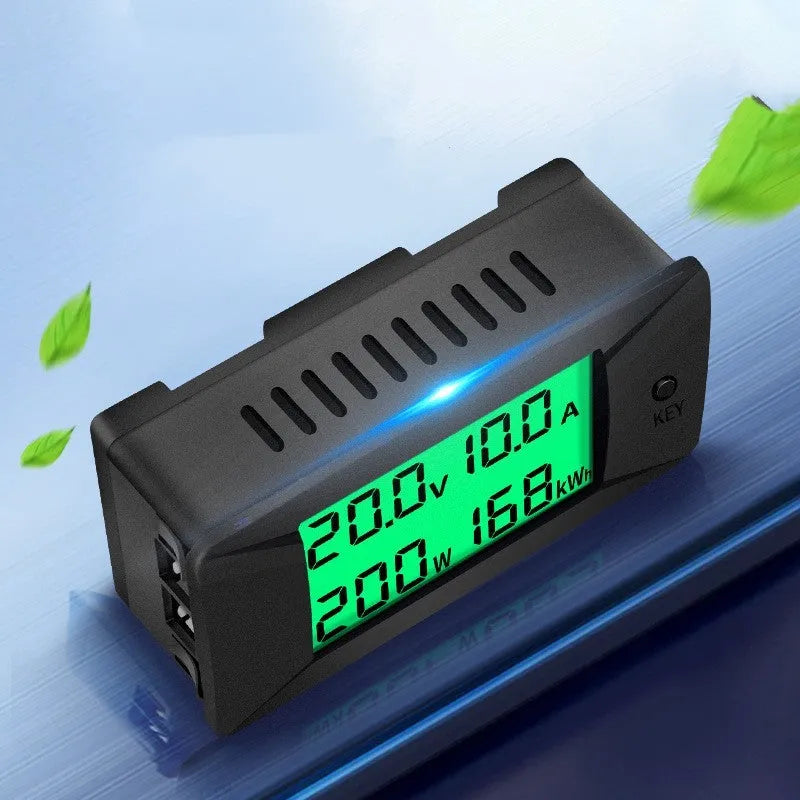

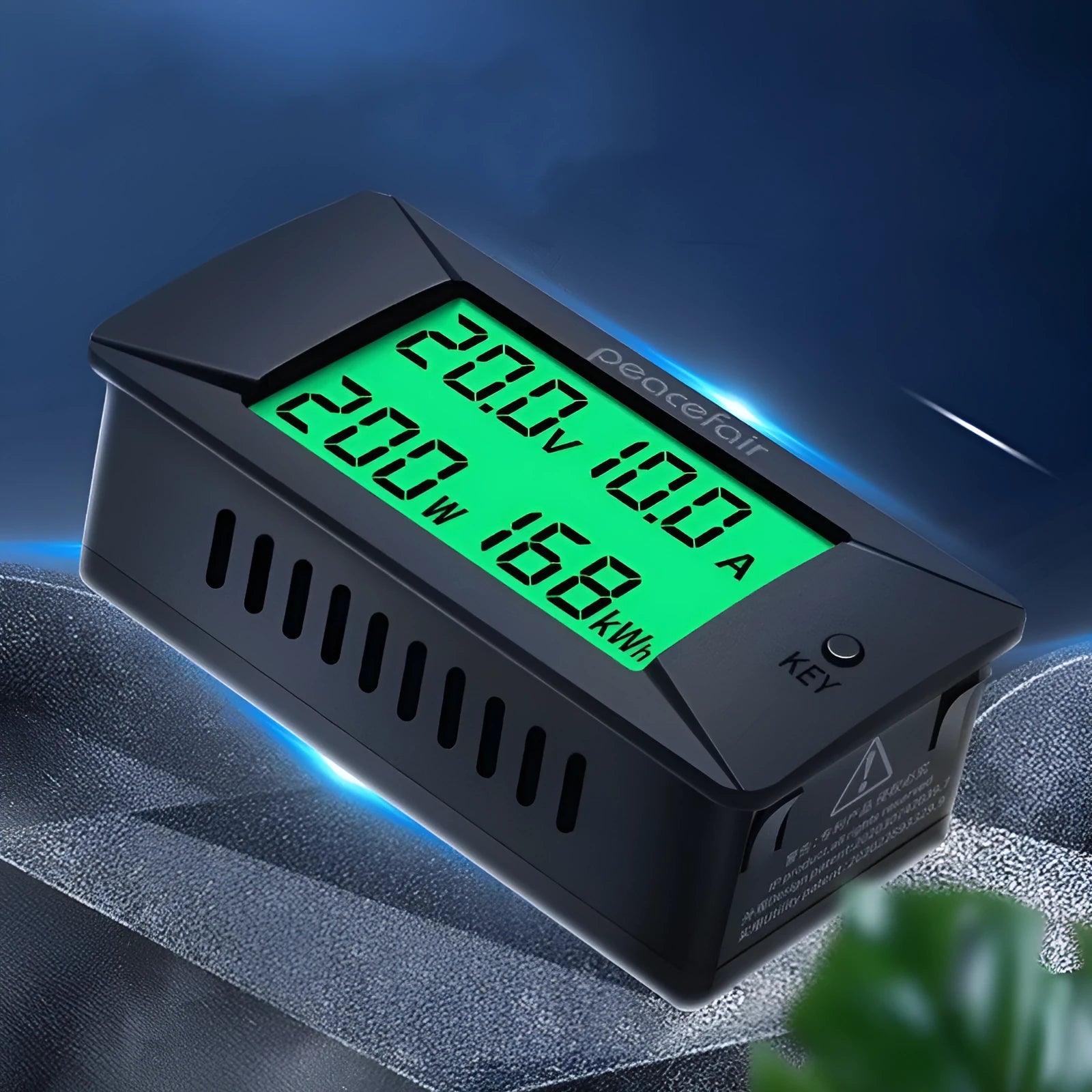

DC Digital Display Voltmeter and Ammeter for 0-300V Battery and System Monitoring

Accurate measurement of direct current (DC) voltage and amperage is fundamental for maintaining and troubleshooting electrical systems in vehicles, renewable energy setups, and electronic projects. This DC digital display voltmeter and ammeter provides a clear numerical readout within a 0-300V range, serving as a vital instrument for monitoring battery charge states, verifying power supply output, or calculating energy consumption. Available in four distinct current-carrying specifications—50A, 100A, 200A, and 300A—it allows you to select a model matched to your circuit's expected load. Each unit is supplied ready for installation with the necessary host, wiring, and, for the 50A and 100A models, a wrench for terminal connections, streamlining the setup process for both professionals and capable DIY enthusiasts.

Features and Construction

The core functionality of this instrument lies in its ability to measure both DC voltage and current, presenting the data on an integrated digital display. Its construction is centred around a compact host unit designed for panel mounting, accompanied by the essential components for electrical integration.

Material and Build

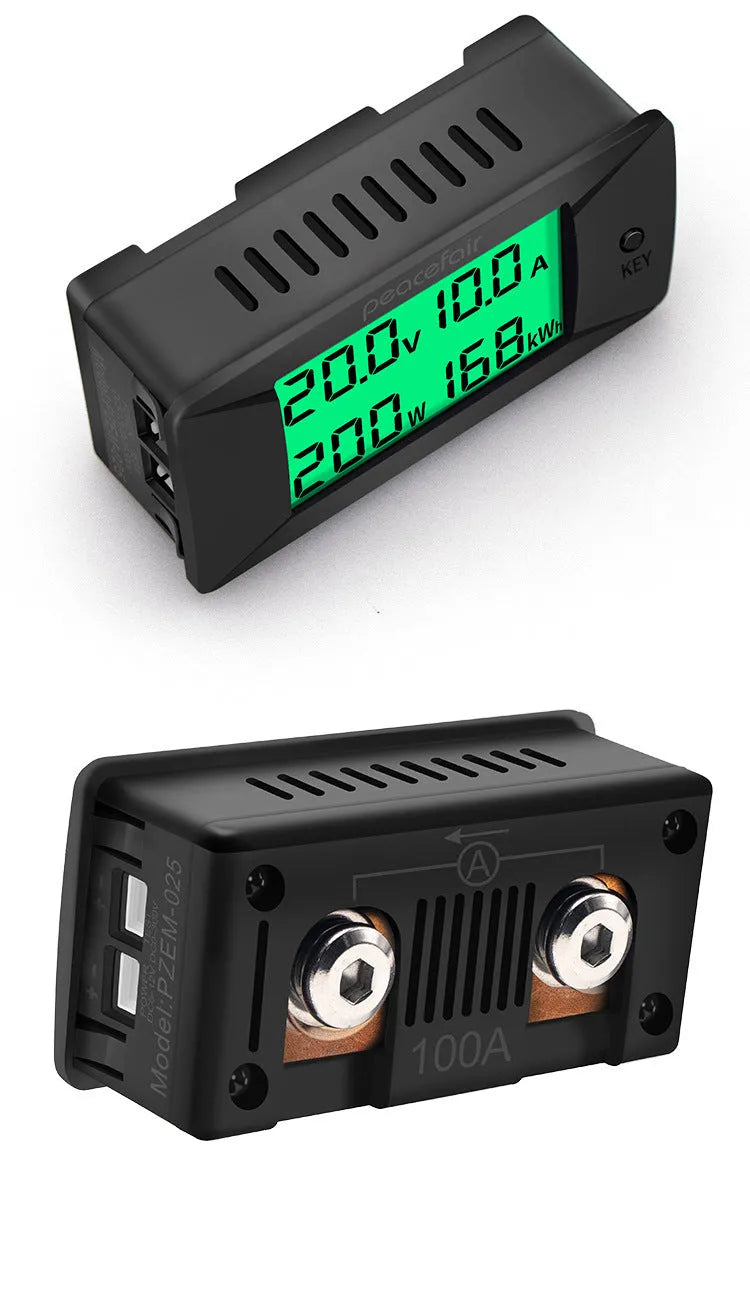

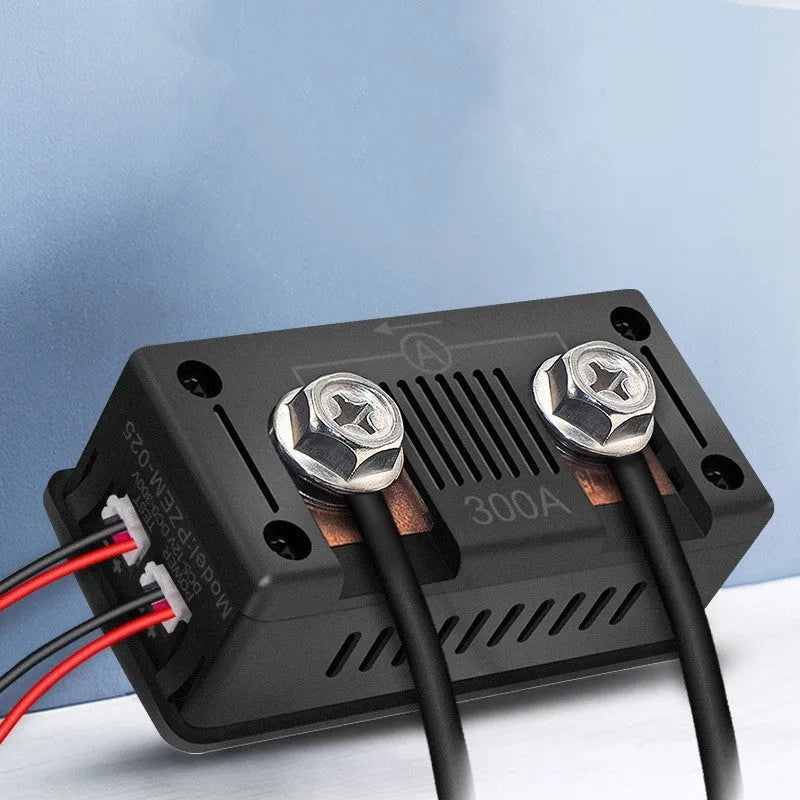

The product consists of a host unit, which houses the display and circuitry, alongside electrical wiring for connection to the power source and load. For the 50A and 100A specifications, a metal wrench is also included to facilitate secure fastening of the wiring to the meter's terminals. This combination of materials provides the physical and electrical pathway needed for the meter to function accurately within its specified ranges, without requiring you to source separate connection hardware.

Size and Practical Fit

The host unit's dimensions are precisely 85.3mm in width, 44mm in height, and 40.2mm in depth. This compact form factor is intentionally designed for integration into control panels, instrument clusters, or project enclosures where space is often at a premium. The modest size ensures it can be fitted without major panel modifications, making it a versatile choice for upgrading existing systems or incorporating into new builds where monitoring capabilities are needed.

Uses and Placement

This meter's 0-300V measurement range and multi-ampere options make it applicable across a spectrum of DC electrical environments. Its placement is typically within sight of an operator or user for convenient monitoring.

Event or Professional Use

In professional, commercial, or critical applications, such as monitoring the state of charge in a bank of deep-cycle batteries for a solar power system or verifying the output of a DC power supply in a workshop, this instrument provides essential data. The 200A and 300A models are suited for higher-power systems, like those found in some electric vehicles, marine applications, or substantial off-grid power installations, where understanding current draw is vital for system safety and battery longevity.

Everyday Home Use

For the hobbyist, caravan owner, or anyone with a 12V or 24V electrical system, the 50A or 100A models offer a practical way to keep tabs on performance. It can be installed in a campervan to monitor leisure battery health, in a car to observe alternator charging, or in a home electronics lab to characterise power supplies. The included wiring and wrench simplify the installation process, making it an accessible project for those with basic electrical knowledge.

Benefits and Buying Value

The value of this digital meter stems from its specificity, completeness of kit, and the actionable data it provides for managing DC power systems.

Reuse and Low Maintenance

Once installed, the meter is a permanent or semi-permanent fixture requiring no ongoing maintenance beyond ensuring connections remain secure and the ambient temperature remains within normal bounds. Its digital display provides continuous, reliable feedback without the calibration needs sometimes associated with analogue meters. The durable construction of the host and wiring is intended for long-term use within the specified electrical parameters.

Why Choose This Product

This product offers a clear advantage through its defined specifications and inclusive package. You can select the exact ampere rating (50A, 100A, 200A, or 300A) needed for your application, avoiding the compromise or over-specification that can come with one-size-fits-all meters. Furthermore, receiving the host, wiring, and necessary tools in one package eliminates the hassle of sourcing compatible parts separately, ensuring a complete and functional solution from the moment you receive it, backed by its stated 0-300V measurement capability.
