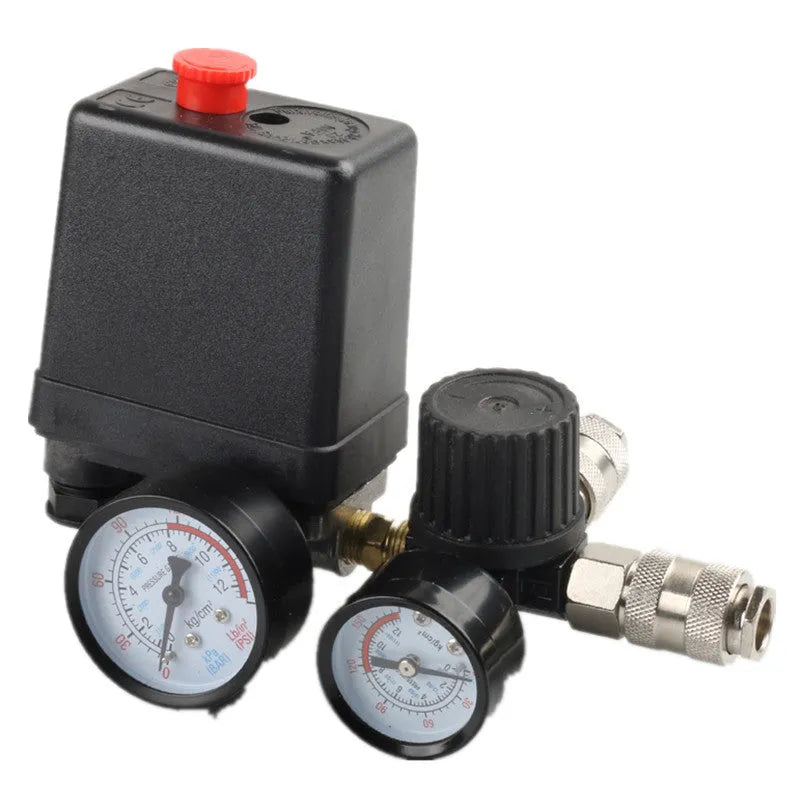

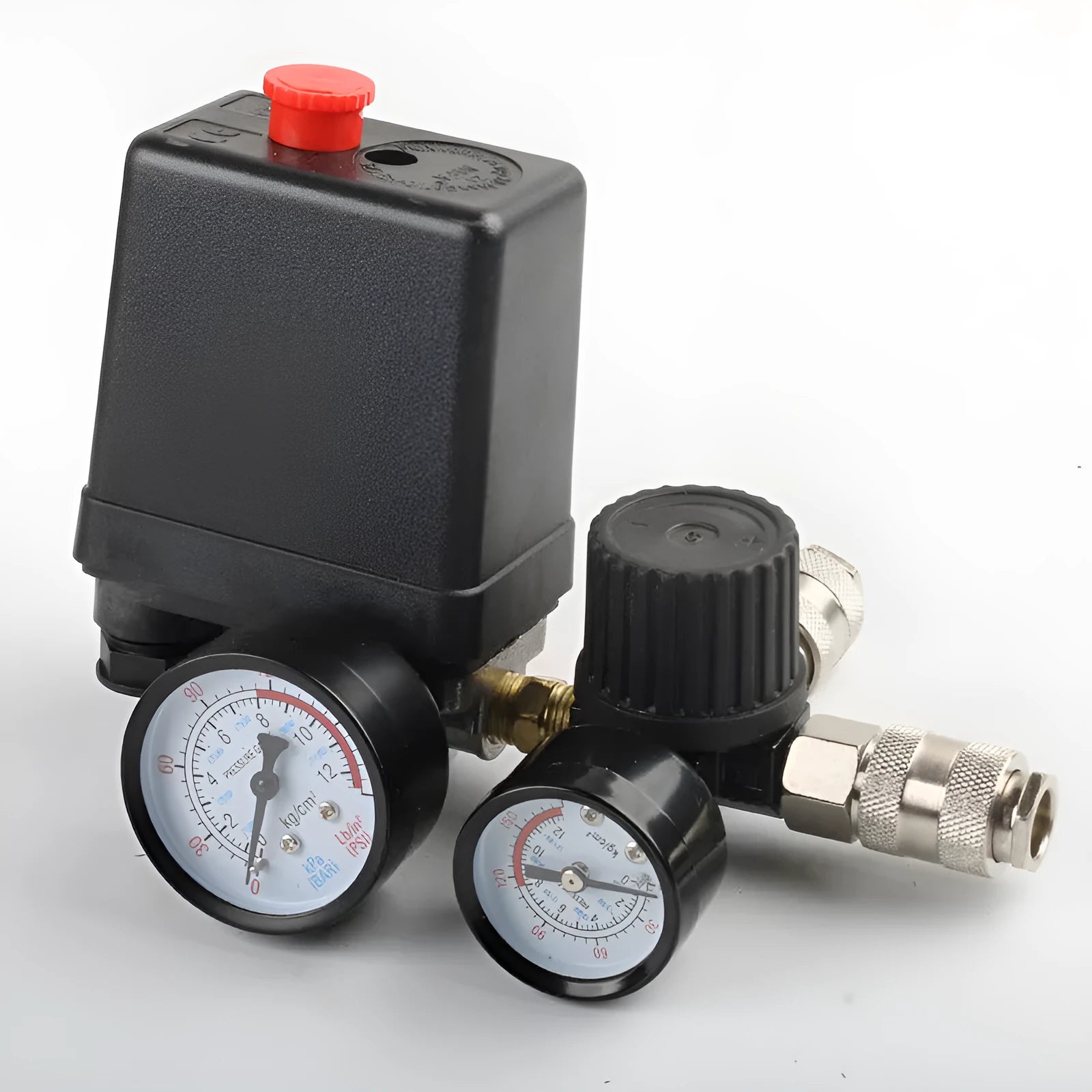

European Style Air Compressor Pressure Regulating Valve Assembly for Precise 0.5-0.8 MPA Control

This European style pressure regulating valve assembly provides industrial-grade pressure management for air compressor systems, designed to maintain precise operational parameters within a specified switching range. The unit offers a practical solution for workshop, manufacturing, and pneumatic applications where consistent air pressure regulation is essential for tool performance and system safety. With clear maximum ratings printed on the switch box and standardised industrial fittings, this assembly integrates readily into existing compressor setups while providing the control needed for efficient operation.

Features and Construction

The pressure regulating assembly combines functional design with industrial specifications, featuring clearly marked operational parameters and standard connection sizes for straightforward integration. The unit's construction focuses on providing reliable pressure management within defined operational limits.

Material and Build

The pressure switch assembly is constructed with industrial-grade components suitable for pneumatic system applications, featuring a robust switch housing that contains the pressure regulation mechanism. The switch box displays maximum operational specifications including voltage, current, and pressure ratings for easy reference during installation and maintenance. The normally closed contact configuration ensures reliable operation in standard compressor control circuits.

Size and Practical Fit

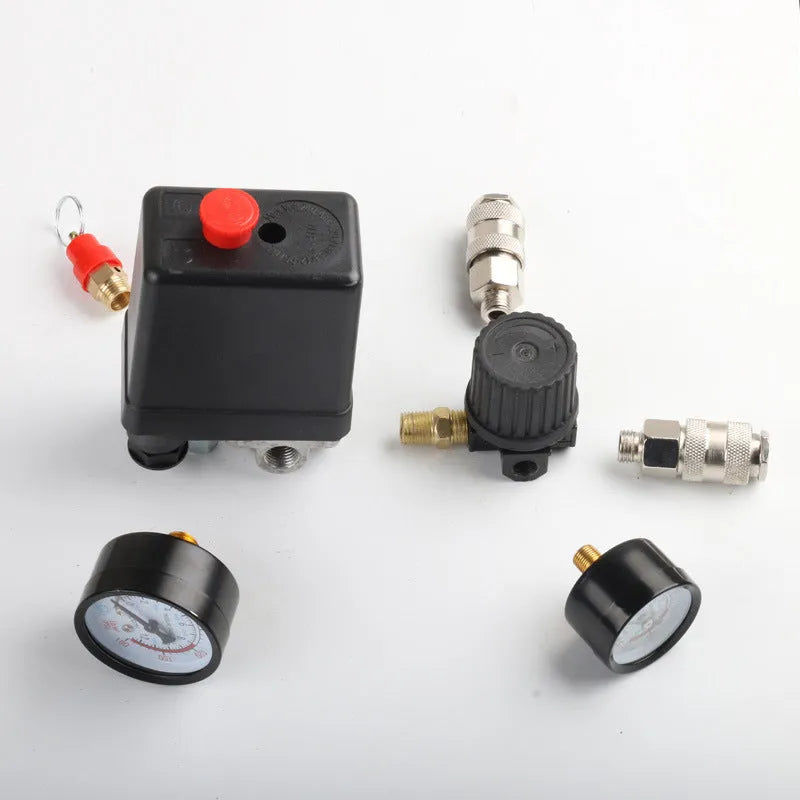

With compact dimensions of 185mm x 100mm x 110mm, the switch box provides space-efficient installation while housing the complete pressure regulation mechanism. The assembly features standard industrial fittings including a 12mm (1/4 inch) connector for secure system connection and a 6mm exhaust pipe for pressure relief. The pressure relief port with 9.5mm outer diameter allows for effective pressure management within the system.

Uses and Placement

This pressure regulating assembly suits various industrial and workshop environments where air compressor pressure control is required. Its dual voltage compatibility makes it adaptable to different electrical systems commonly found in commercial settings.

Event or Professional Use

In professional workshop and manufacturing environments, this pressure regulator provides precise control for pneumatic tools and machinery, ensuring consistent performance through maintained pressure levels. The 0.5-0.8 MPA switching range covers common industrial requirements, while the 12 BAR maximum rating offers safety margin for typical compressor operations. Installation in systems with either 220V or 380V power supplies is supported, making it suitable for diverse industrial settings.

Everyday Home Use

For serious hobbyists and home workshops with substantial compressor systems, this regulator offers professional-grade pressure management that exceeds typical domestic requirements. The clearly marked specifications assist with proper installation, while the standardised fittings ensure compatibility with common compressor setups. The normally closed contact configuration provides safe operation in typical control circuits.

Benefits and Buying Value

The pressure regulating assembly delivers practical benefits through its specification coverage and integration-friendly design, providing value through reliable operation and system compatibility.

Reuse and Low Maintenance

The industrial construction and clearly marked specifications support long-term use with minimal maintenance requirements. The standardised 12mm connector and 6mm exhaust pipe fittings ensure compatibility with replacement components and system upgrades. The pressure switch mechanism is designed for repeated operation within its specified parameters.

Why Choose This Product

This pressure regulating assembly offers practical advantages through its dual voltage support, covering both 220V and 380V systems commonly found in different regions and settings. The precisely defined 0.5-0.8 MPA switching range provides targeted control for specific pressure requirements, while the industrial-grade fittings ensure secure system integration. The compact dimensions allow installation in space-constrained locations without compromising functionality.
