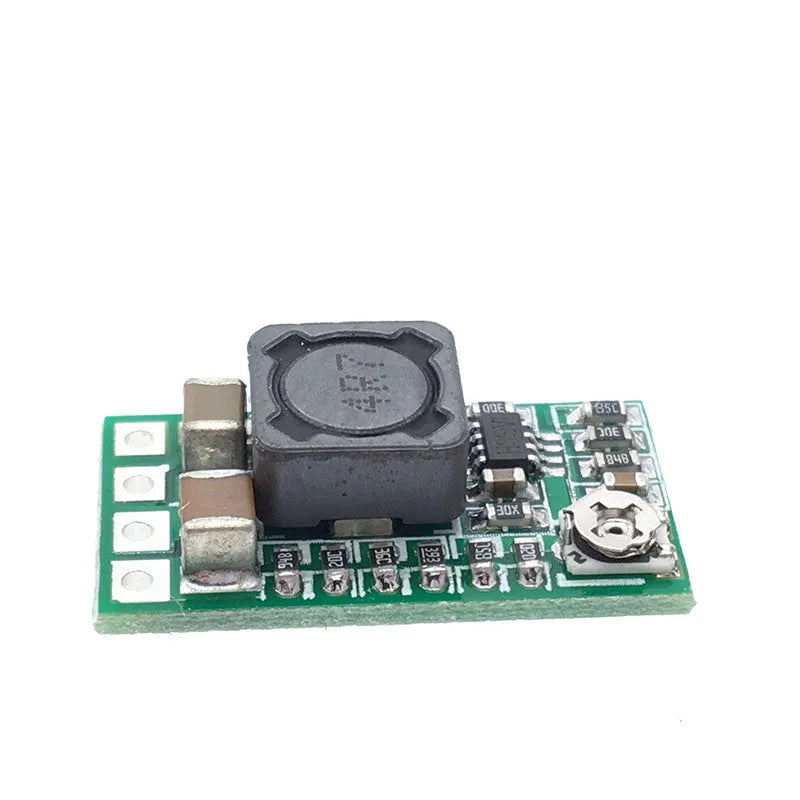

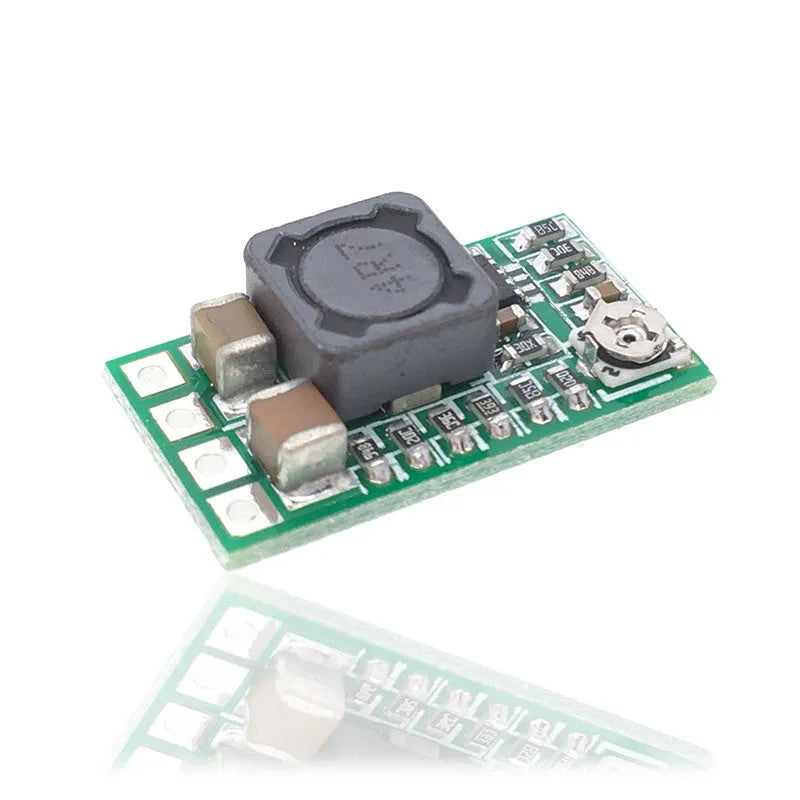

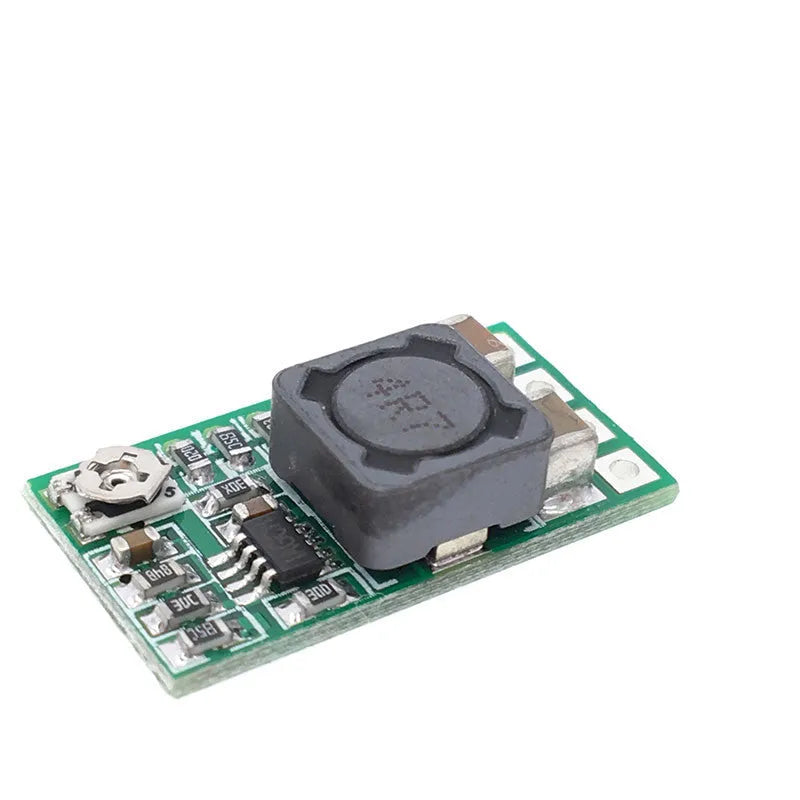

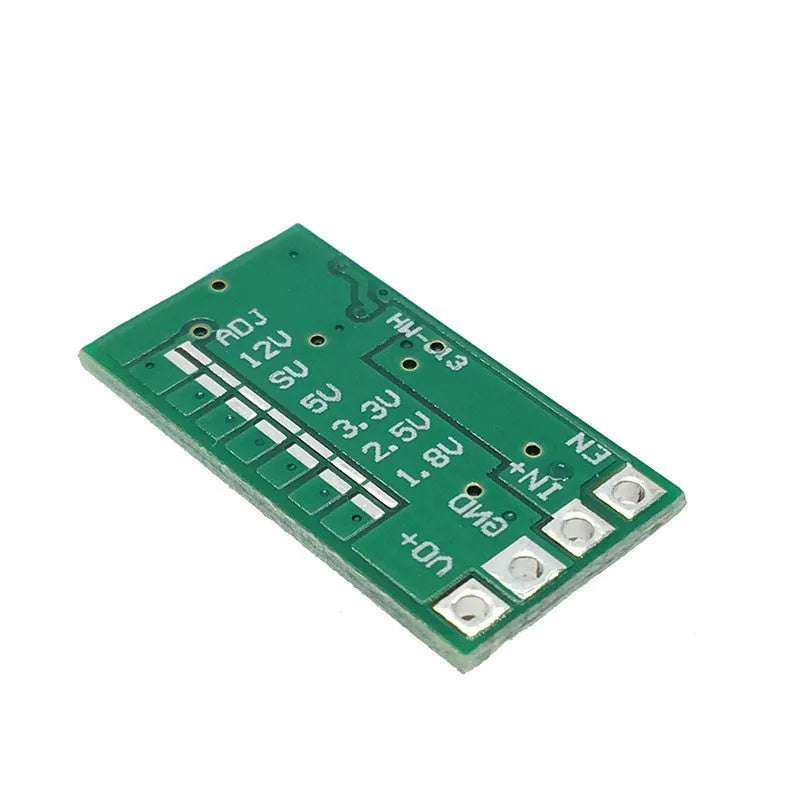

Mini DC-DC 12-24V to 5V 3A Step Down Power Supply Module for Stable Device Power

This compact DC-DC buck converter module is engineered to efficiently step down a higher DC voltage supply to a stable, lower voltage required by many common electronic components. Accepting an input range from 12 volts up to 24 volts, it delivers a precisely regulated 5-volt output capable of supplying up to 3 amps of current. This makes it an ideal choice for hobbyists, makers, and engineers needing to integrate a reliable power source into prototypes, DIY projects, or embedded systems. With its specified electrical performance parameters, including tight voltage regulation and built-in safety features, it addresses the core requirement of converting readily available power sources like car batteries, industrial power supplies, or large-capacity battery packs into the standard 5V used by Arduino boards, Raspberry Pi computers, sensor arrays, and numerous other digital devices.

Features and Construction

The module's primary function is defined by its key electrical specifications, which govern its performance in real-world applications. It is designed as a surface-mountable or panel-mountable unit on a standard green printed circuit board.

Electrical Performance and Regulation

The module's core performance is defined by several key metrics. The voltage adjustment rate of ±0.5% indicates how closely the output voltage is maintained relative to its nominal 5V target despite variations in the input supply, contributing to stable device operation. Similarly, the load adjustment rate of ±1% shows how well the output voltage is regulated as the load current drawn from the module changes from light to its full 3A capacity. The dynamic response speed of 5% recovery within 200 microseconds specifies how quickly the output recovers from sudden changes in load demand, which is important for circuits with rapidly switching components.

Safety and Efficiency Characteristics

For user and circuit safety, the module incorporates an output short-circuit protection feature, designed to intervene if the output terminals are accidentally connected together. However, the source text advises against prolonged short-circuit conditions, indicating the protection is for temporary fault mitigation. On the efficiency side, the low quiescent current of 0.85 mA means the module draws minimal power when connected to an input source but not actively supplying a load, which is beneficial for battery-powered applications. A thermal specification is provided: under full 3A load, the module's temperature is expected to rise by 40°C above the ambient temperature, informing the need for heat management in confined spaces.

Uses and Placement

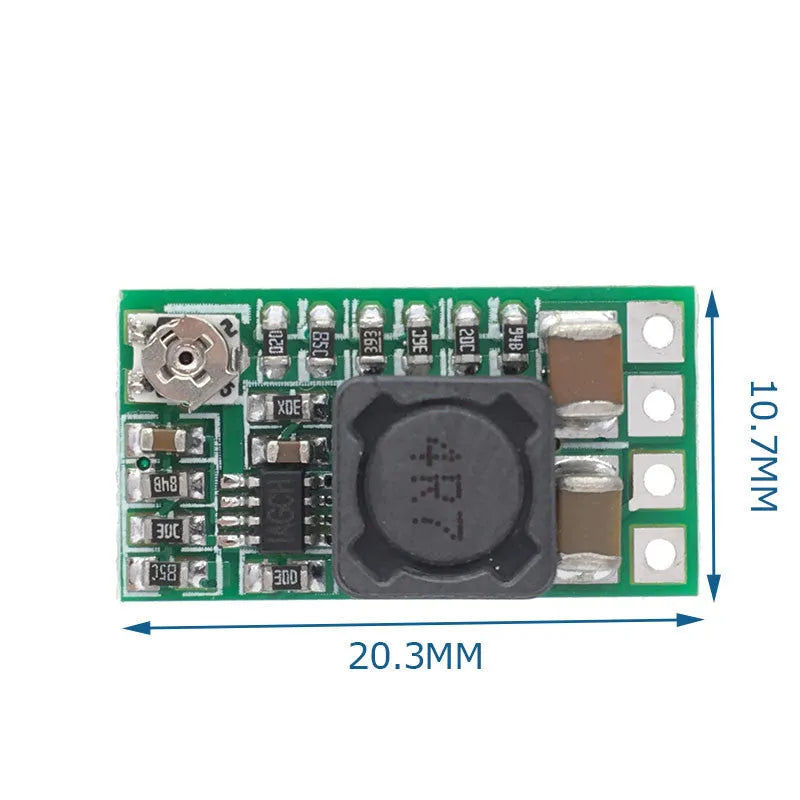

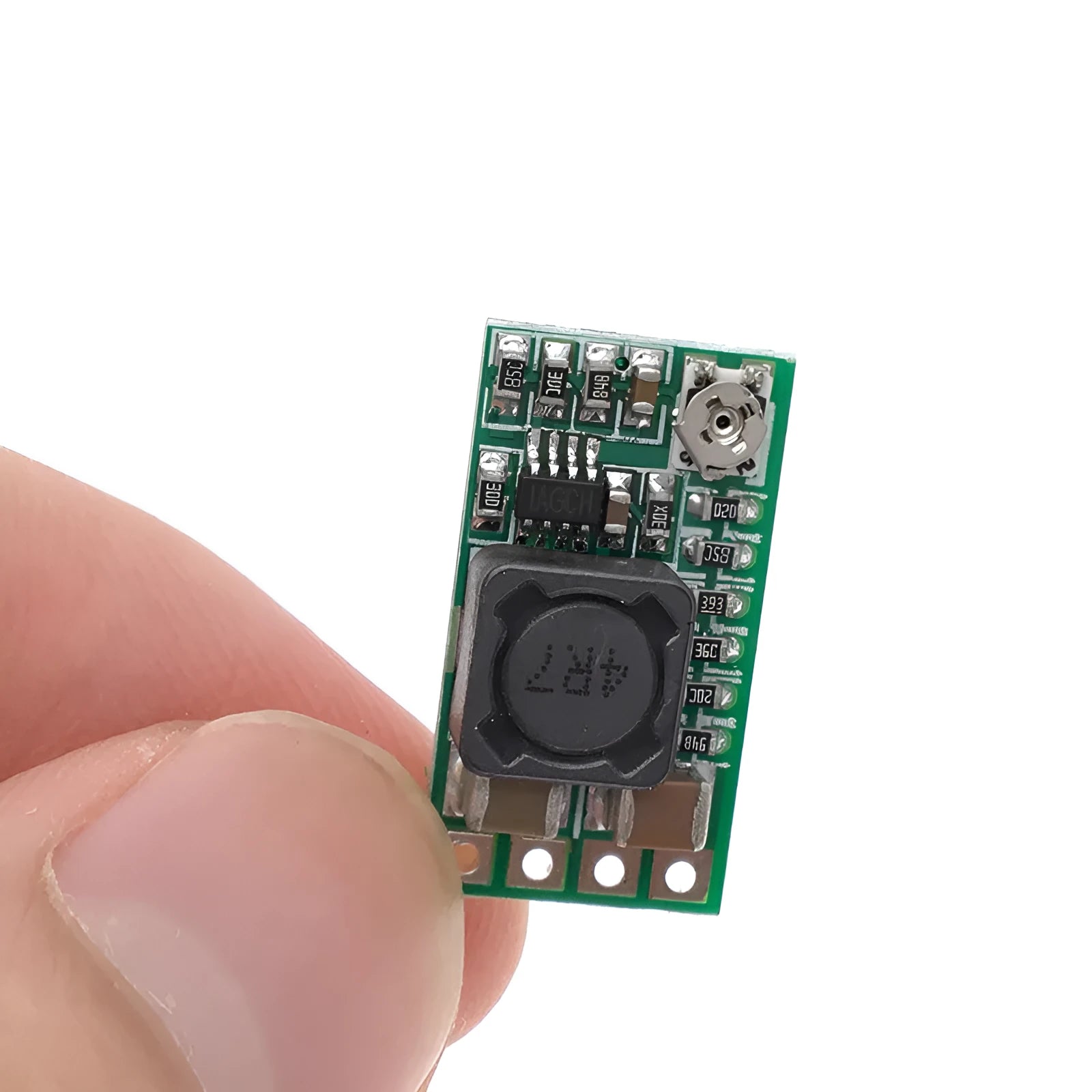

This converter is suited to scenarios where a stable, moderately powerful 5V supply must be derived from a higher-voltage DC source. Its compact form factor allows for integration into various spaces.

Electronic Project and Prototyping Use

For electronics enthusiasts and professionals, this module serves as a ready-made power regulation stage. It can be used to power breadboarded circuits during development, supply permanent installations like LED lighting arrays, or act as the regulated supply for microcontroller-based projects such as home automation systems or data loggers. Its 3A output capacity provides enough headroom for powering multiple sensors, displays, and actuators simultaneously from a single unit.

Everyday Device and System Integration

Beyond prototyping, it can be integrated into finished products or installations. Examples include creating a 5V supply for a dashboard USB charging port from a vehicle's 12V system, powering security cameras or network equipment from a central 24V DC industrial supply, or building a backup power system for routers and modems using a 12V leisure battery. Its wide input range offers flexibility in choosing a power source.

Benefits and Buying Value

The value of this module lies in its verified specifications, integrated protection, and the time it saves compared to designing a bespoke converter circuit.

Reliability and Ease of Use

The provided technical specifications, such as the voltage and load regulation percentages, offer a predictable and reliable performance benchmark. This allows users to select the module with confidence for applications where voltage stability is critical. The inclusion of short-circuit protection adds a layer of safety, potentially protecting downstream components from damage during wiring errors or faults, which is a practical benefit over unprotected basic converter designs.

Why Choose This Product

This module is a practical choice because it presents a complete, tested power conversion solution with documented parameters. For users who lack the expertise or time to design a regulator from discrete components, it provides a ready-to-use unit with known capabilities. The clear specification of a 40°C temperature rise under full load allows for informed thermal planning. The wide 12-24V input range makes it versatile for use with many common DC power sources without requiring adjustment or modification.
