Parallel Charging Board for 2-8S Lithium Batteries: Charge Up to Four Packs Simultaneously

This parallel charge board is an expansion adapter designed for the RC hobbyist, drone pilot, or any user managing multiple lithium polymer (LiPo) or lithium-ion battery packs. It streamlines the charging process by allowing you to connect and balance charge up to four separate battery packs at the same time, provided they are of the same type and share an identical cell count (S number). This eliminates the tedious cycle of charging one pack, disconnecting it, and connecting the next, thereby drastically cutting down on the total time spent on battery management. The board is engineered with practical safety features, including individual fuses for each battery group, to help protect your equipment during the parallel charging process.

Features and Construction

The board's functionality is built around a robust and safety-conscious design. It connects multiple batteries in parallel, which combines their capacity while maintaining the original cell count voltage. For example, connecting two 4S 5000mAh batteries in parallel creates a single 4S 10000mAh battery for the charger to handle. This method can allow for a higher effective charge rate, shortening overall charging duration, especially for batteries that may not individually support high C-rate charging.

Material and Build

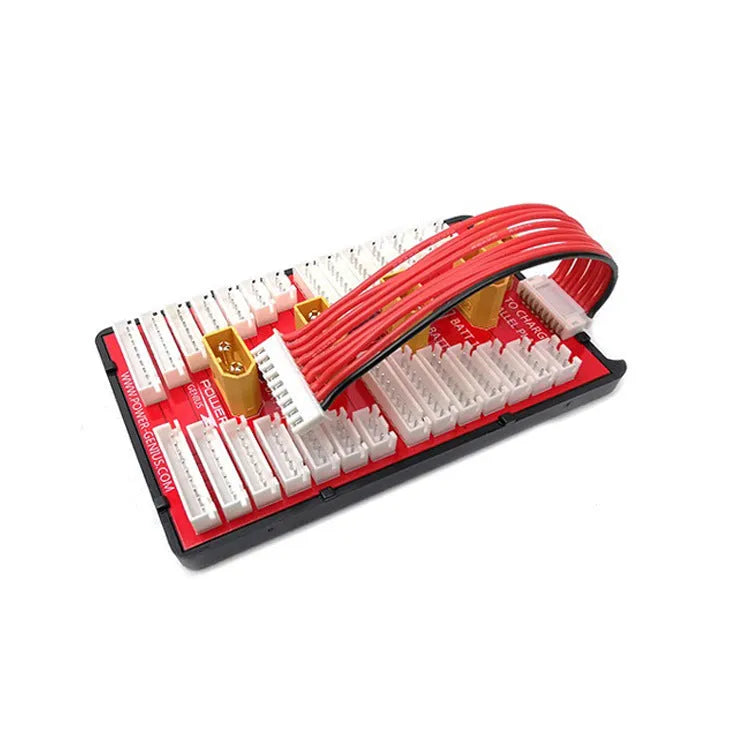

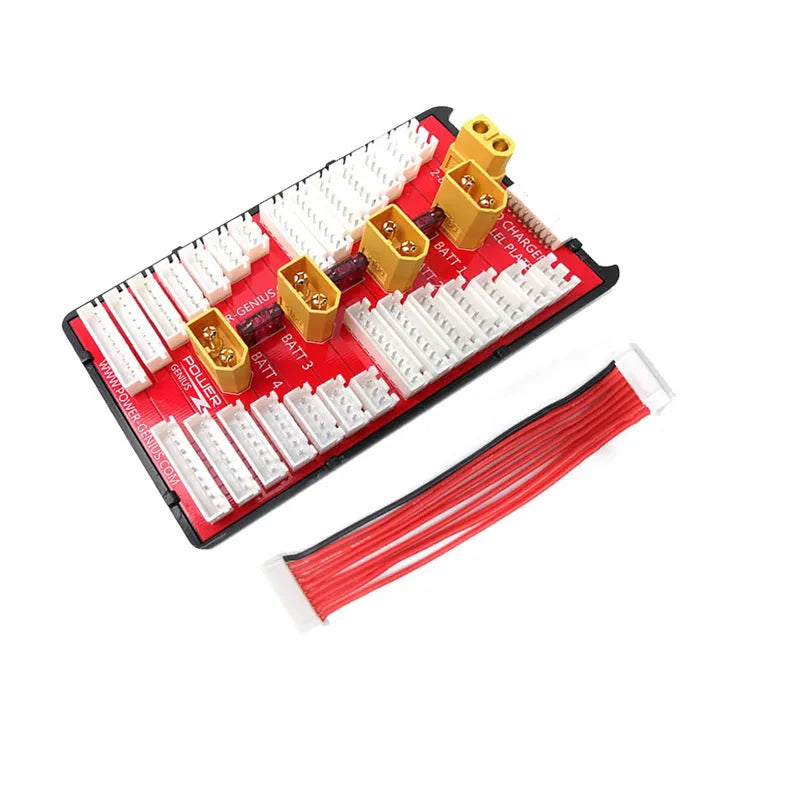

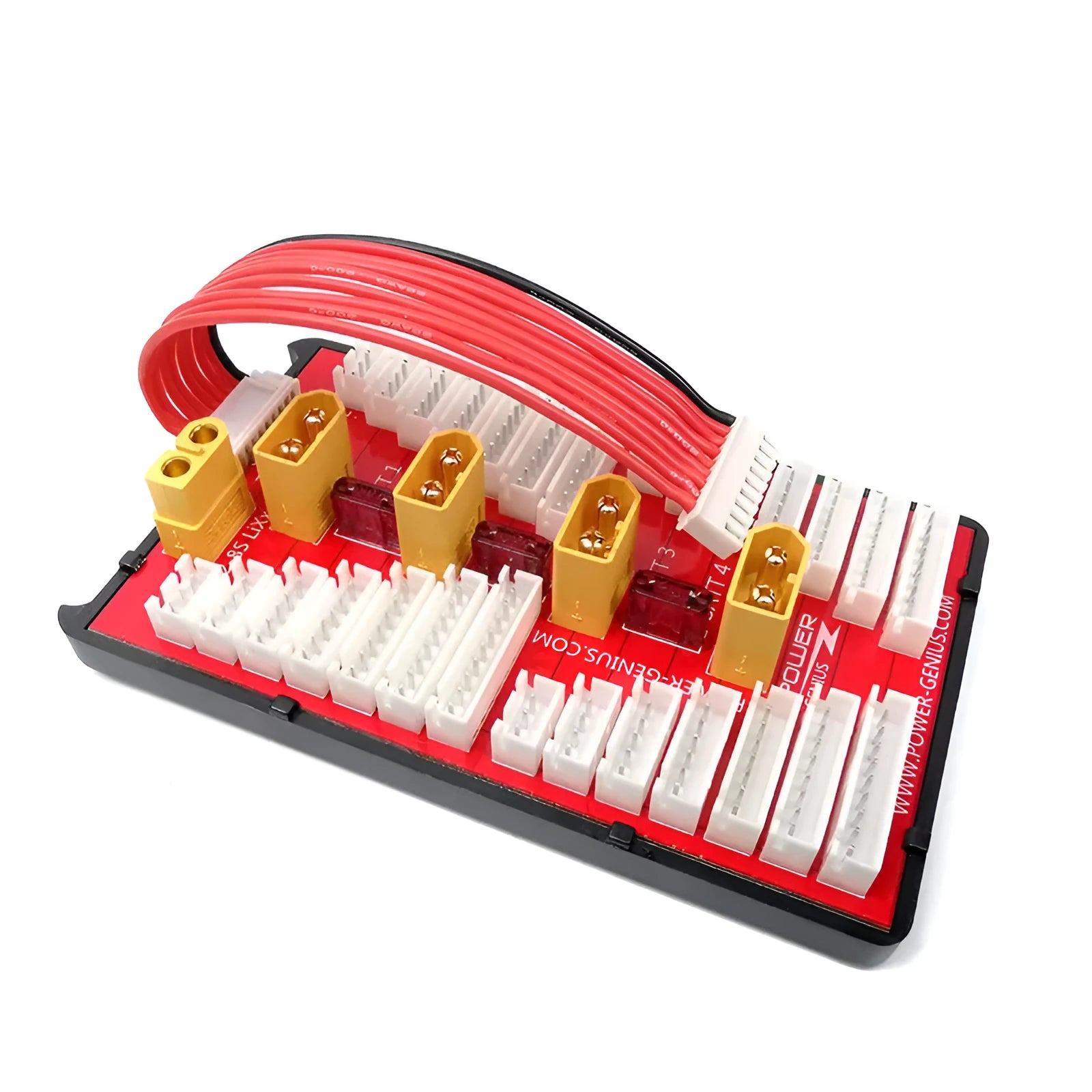

Constructed to handle the demands of parallel charging, the board uses a printed circuit board (PCB) with thicker copper foil, which is specified to support a maximum charging current of 35A. The critical electrical connections are made via high-quality gold-plated connectors, chosen for their reliable conductivity and resistance to corrosion. The output lines from the balance ports are made from flexible and durable 18AWG multi-strand silicone wire, which is both heat-resistant and easy to route in your workspace.

Size and Practical Fit

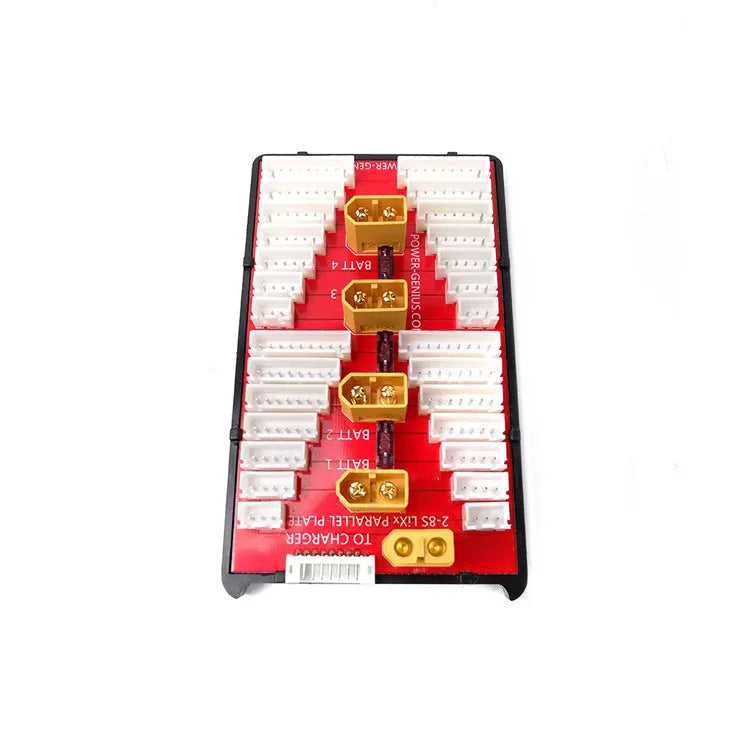

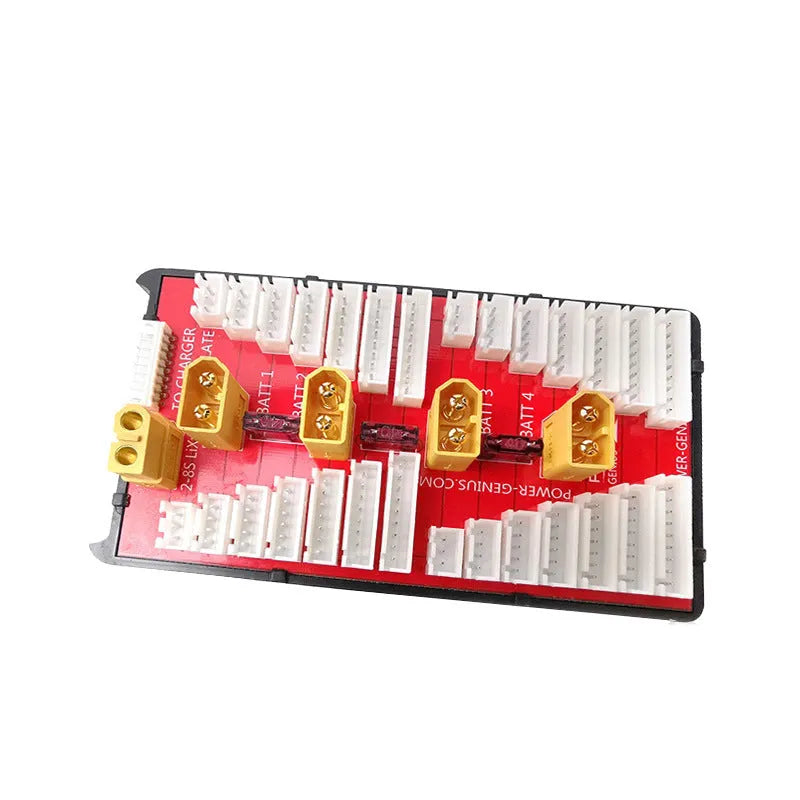

While exact physical dimensions are not detailed, the board is supplied in a blister pack for retail. Its design accommodates the connection of four separate battery sets, each requiring a main power lead (e.g., XT60, Deans) and a balance lead. The layout includes clearly marked connection points and is supplied with protective silicone caps for the T-style balance connectors. These caps are a simple yet vital accessory; they should be placed on any unused ports to prevent accidental short circuits caused by stray metal objects.

Uses and Placement

This adapter board is tailored for scenarios where multiple battery packs need to be charged efficiently between uses. It is ideal for users with several models, such as RC cars, drones, or aircraft, who cycle through multiple batteries in a single session. By charging packs in parallel, you can ensure all your batteries are ready for the next outing in a fraction of the time it would take to charge them individually.

Event or Professional Use

For competitive RC racing, drone racing, or professional filming work with multi-rotor craft, time between flights or runs is critical. This parallel board allows a pilot or driver to quickly recharge a full set of batteries (up to four packs) during a break, maximising track or flight time. The reduction in balance charging cycles from four individual sessions to one combined session directly translates to less waiting and more active use of your equipment.

Everyday Home Use

For the enthusiast managing a fleet of models at home, this board simplifies workshop routine. Instead of monitoring and swapping batteries on a charger throughout the day or evening, you can set up a single parallel charging session. This is particularly useful for charging several lower-capacity or lower C-rating batteries together, as the combined capacity can allow the charger to operate at a higher, more efficient current, often completing the job faster than charging each pack separately on a low setting.

Benefits and Buying Value

The primary value of this parallel charging board lies in its time-saving efficiency and integrated safety measures. It transforms a sequential, manual task into a batch process, freeing you up for other activities. The built-in protective features, like the 40A fuses, add a layer of security to this process, which is a crucial consideration when working with high-capacity lithium batteries.

Reuse and Low Maintenance

The board is a durable tool designed for repeated use. Its solid PCB construction, quality connectors, and silicone wiring are chosen for longevity. Maintenance is minimal, primarily consisting of visually inspecting wires and connectors for wear and ensuring the silicone safety caps are in place when ports are not in use. The fuses are a sacrificial safety component; if one blows due to a fault condition (like an excessive voltage difference between packs), it can be replaced, protecting the more expensive board and charger.

Why Choose This Product

Choose this parallel charging board if you regularly charge multiple lithium battery packs of the same cell configuration. Its key advantages are the concrete ability to charge four packs at once, the specific support for 2-8S batteries, and the inclusion of 40A fuses for circuit protection. It provides a practical, source-supported method to reduce total charge time by consolidating balance cycles. It is a logical and efficient upgrade for anyone looking to optimise their battery charging workflow without compromising on basic electrical safety.
