Tungsten Carbide PCB Drill Bit Set with Fixed Straight Shank and 0.1-1.2mm Diameter Range

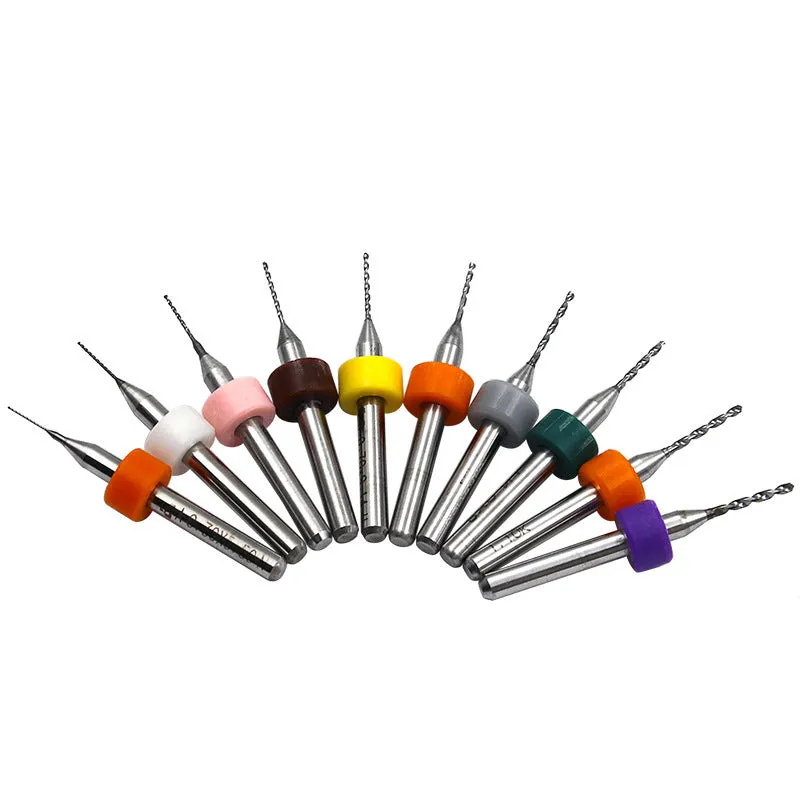

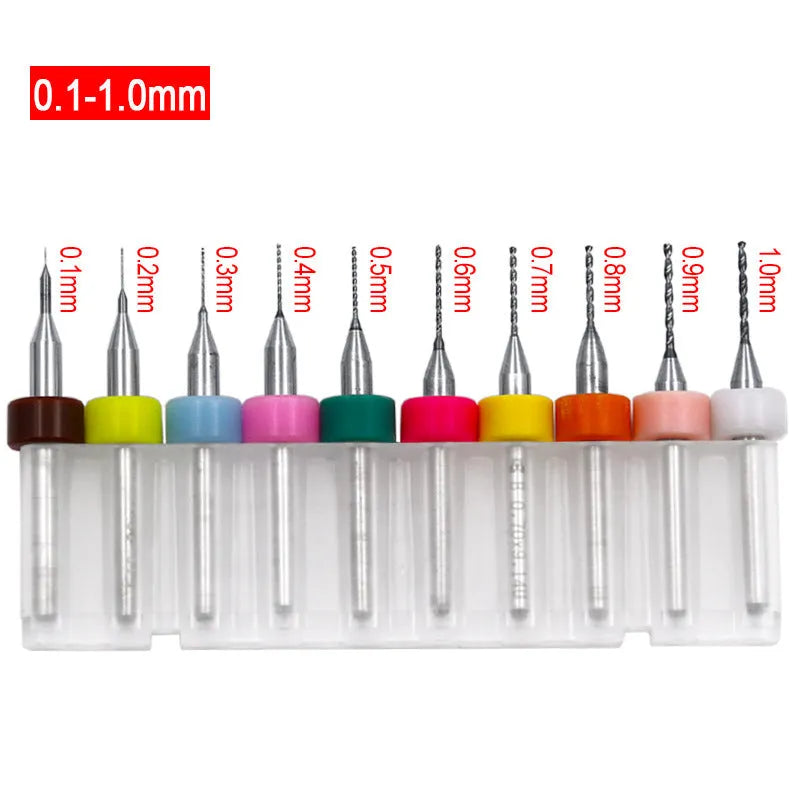

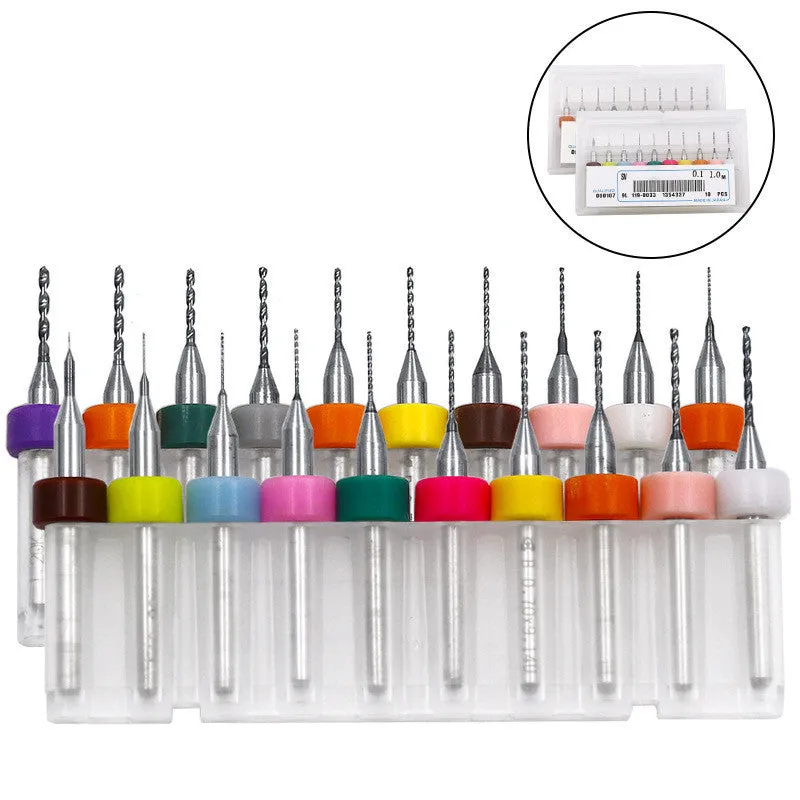

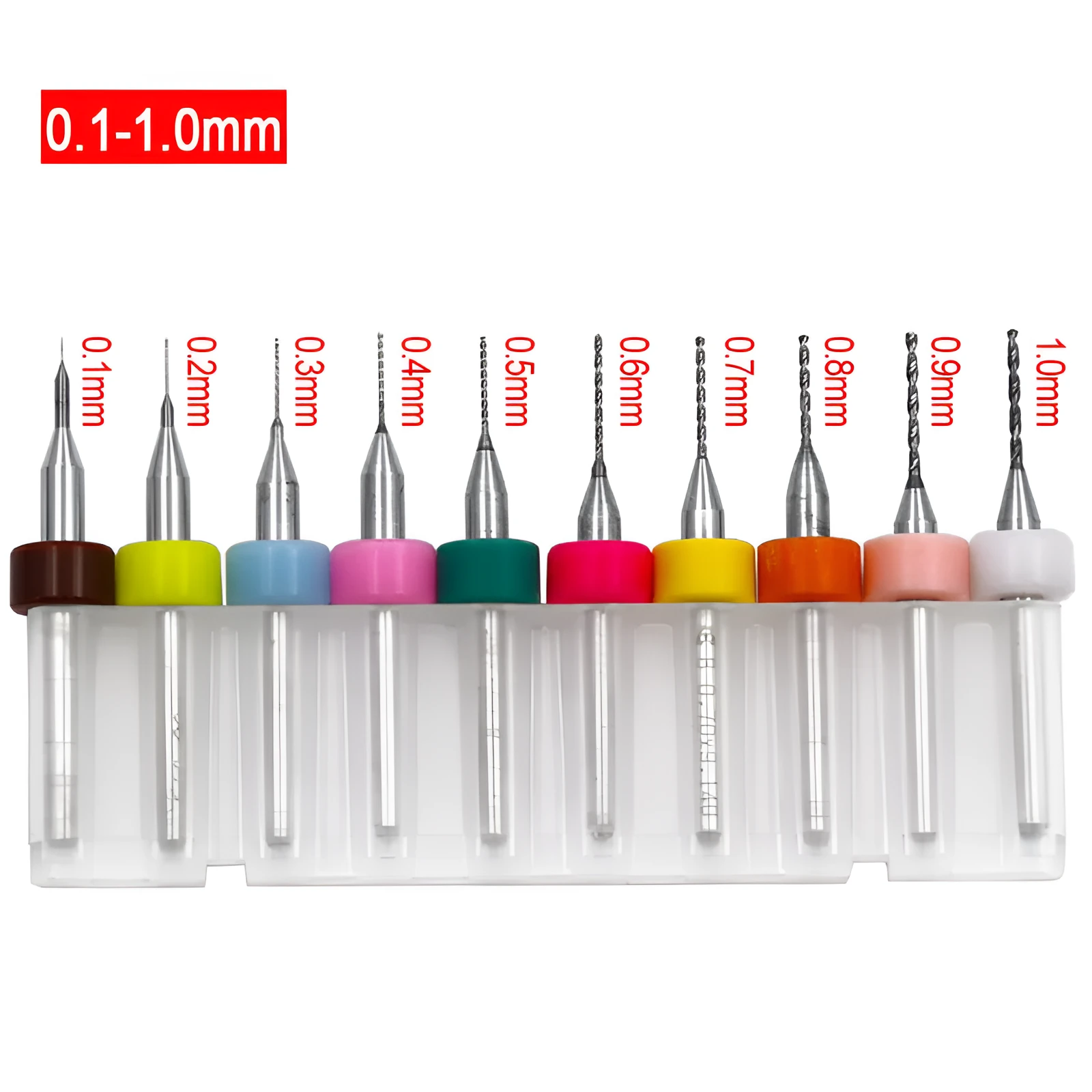

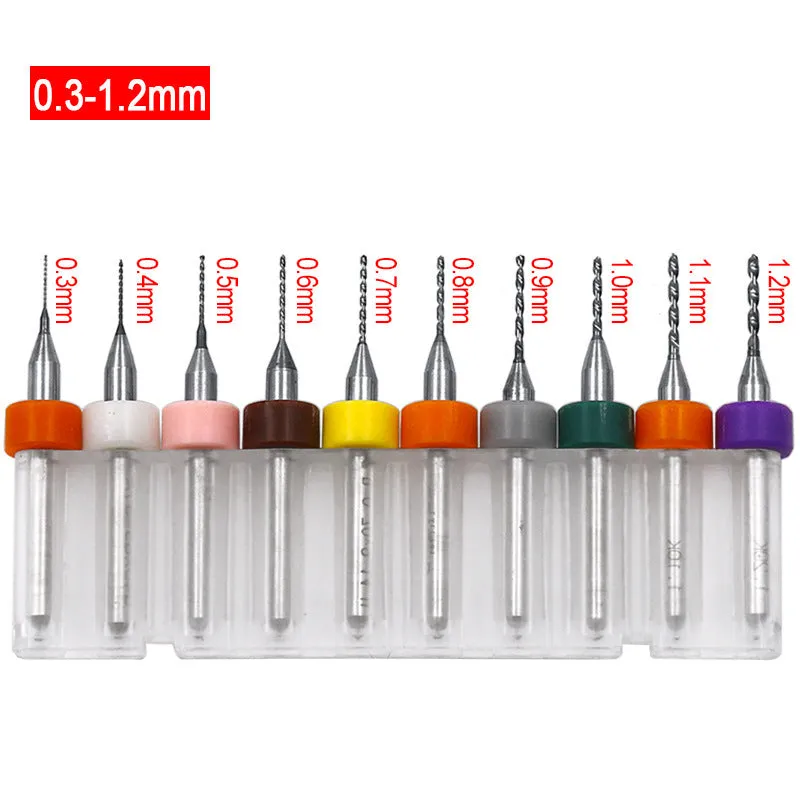

This set of straight shank twist drill bits is engineered for precision drilling applications in electronics, specifically for creating holes in printed circuit boards (PCBs). Supplied in a pack of ten, the bits cover a practical range of blade diameters from 0.1 millimetres up to 1.2 millimetres, catering to various component lead sizes and PCB design requirements. With a total tool length of 36 to 38 millimetres and a usable cutting flute length of 1.5 to 10.5 millimetres, these drills offer controlled depth penetration for board substrates. The fixed straight shank design, with a consistent 3.2mm diameter round handle, ensures compatibility with standard precision tool holders and rotary tools used in electronics workshops and manufacturing.

Features and Construction

The drill bits are defined by their material and specific dimensional specifications, which are critical for their intended use in PCB fabrication.

Material and Build

The drill bits are constructed from tungsten steel, commonly referred to as tungsten carbide in tooling contexts. This material provides the necessary hardness and wear resistance for cutting through the fibre-reinforced epoxy laminates and copper layers typical of circuit boards. The fixed shank design means the entire tool, from cutting tip to handle end, is a single, rigid piece of material, promoting stability and reducing run-out during high-speed drilling operations essential for clean, accurate holes.

Size and Practical Fit

Key to their function are the precise dimensions. The shank diameter is uniformly 3.2mm, a size suited for many precision collets and chucks on micro drills and PCB drilling stations. The overall length is compact, between 36mm and 38mm, making them suitable for benchtop drilling setups. The useful length of the chip flute—the spiralled portion that removes material—varies from 1.5mm to 10.5mm, which dictates the maximum depth of hole achievable in a single pass and must be considered for multi-layer board drilling.

Uses and Placement

These tools are specialised for specific tasks within electronics manufacturing, repair, and prototyping.

Event or Professional Use

In professional PCB assembly or prototyping labs, this set provides a ready range of standard hole sizes for through-hole components, vias, and mounting points. The availability of diameters from a fine 0.1mm up to 1.2mm covers leads for resistors, capacitors, ICs, and connectors. The tungsten carbide construction maintains an edge through multiple boards, supporting batch production or repair work on multiple units where tool longevity between changes is a factor.

Everyday Home Use

For electronics hobbyists, makers, or those involved in small-scale repair, this ten-piece set offers a practical solution. Having multiple sizes on hand means being prepared for various projects without needing separate purchases. The straight shank ensures compatibility with common rotary tools like Dremels or other bench-top drills often found in home workshops, allowing for precise manual drilling of prototype boards or modifying existing circuits.

Benefits and Buying Value

The value of this product lies in its specification-matched design for a specific task and the practical advantages of a multi-size set.

Reuse and Low Maintenance

As a consumable tool, its value is extended by the durable tungsten carbide material, which resists blunting longer than high-speed steel alternatives when drilling abrasive PCB materials. The set of ten bits means that for frequently used sizes, a spare is available, and for less common sizes, the tool is there when needed, reducing downtime. Proper use and storage are the primary maintenance requirements.

Why Choose This Product

This product is chosen for its direct match to a technical need: drilling small, clean holes in circuit boards. The specifications—the tungsten carbide material, the 3.2mm shank, the diameter range, and the supplied quantity—are all aligned with that task. It avoids being a general-purpose drill bit, instead offering parameters like the very short flute length that provide control and prevent breakage when drilling thin materials, which is a key practical advantage for this application.
