PWM DC Motor Governor for 4.5V-35V Speed Control with 90W Power and 5A Current Rating

This PWM DC motor governor offers reliable speed regulation for DC brush motors operating within a 4.5V to 35V range, making it suitable for hobbyist projects, small machinery, and various applications requiring adjustable motor speeds. With its 90W output power capability and 0-5A current handling, this compact controller provides flexible motor management in a space-efficient package measuring just 30mm x 26mm x 14mm (excluding the adjustment handle). The 20kHz PWM frequency ensures smooth operation, while the low 7µA standby current helps maintain power efficiency when the governor is not actively adjusting motor speeds.

Features and Construction

The governor's design prioritises practical functionality for DC motor control applications, featuring straightforward operation and clear specifications for reliable integration into various projects.

Material and Build

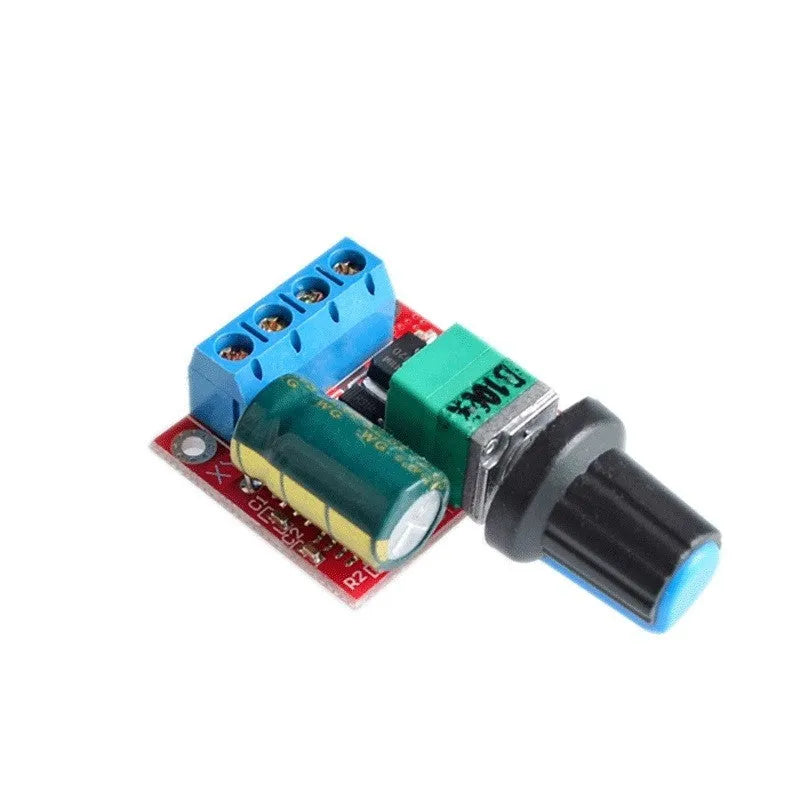

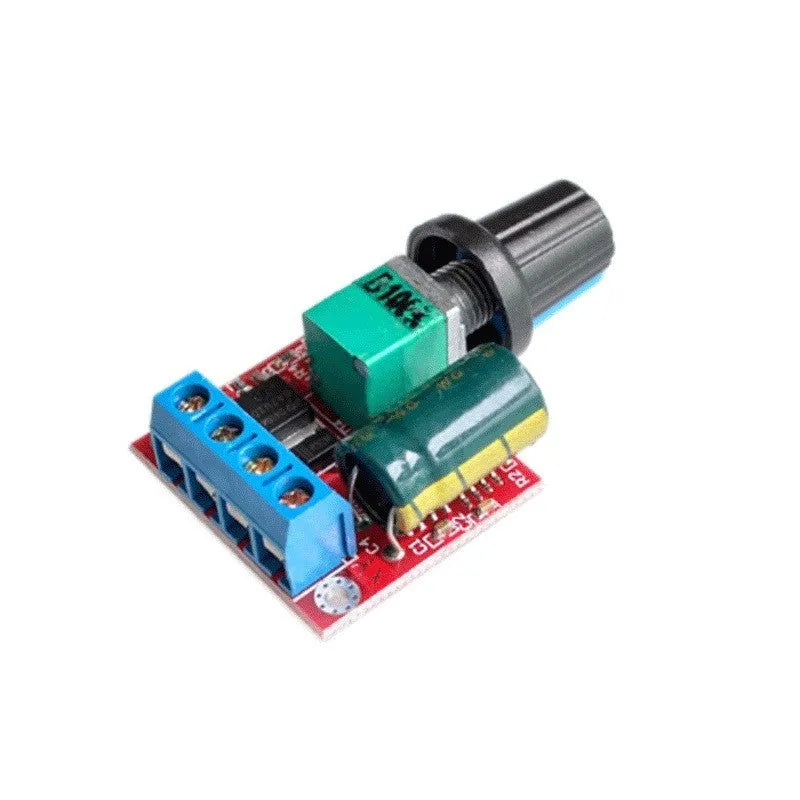

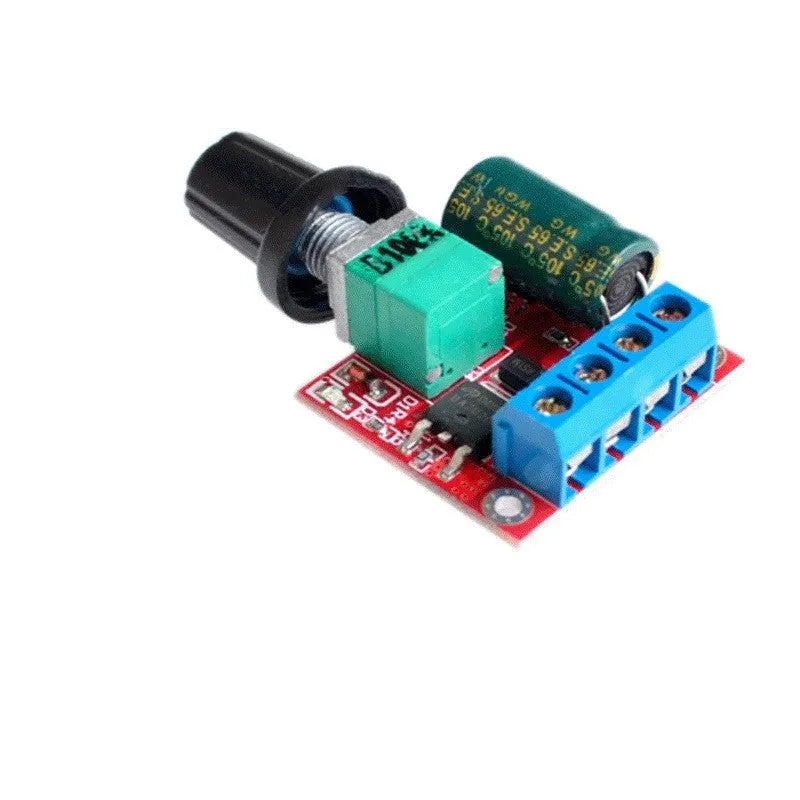

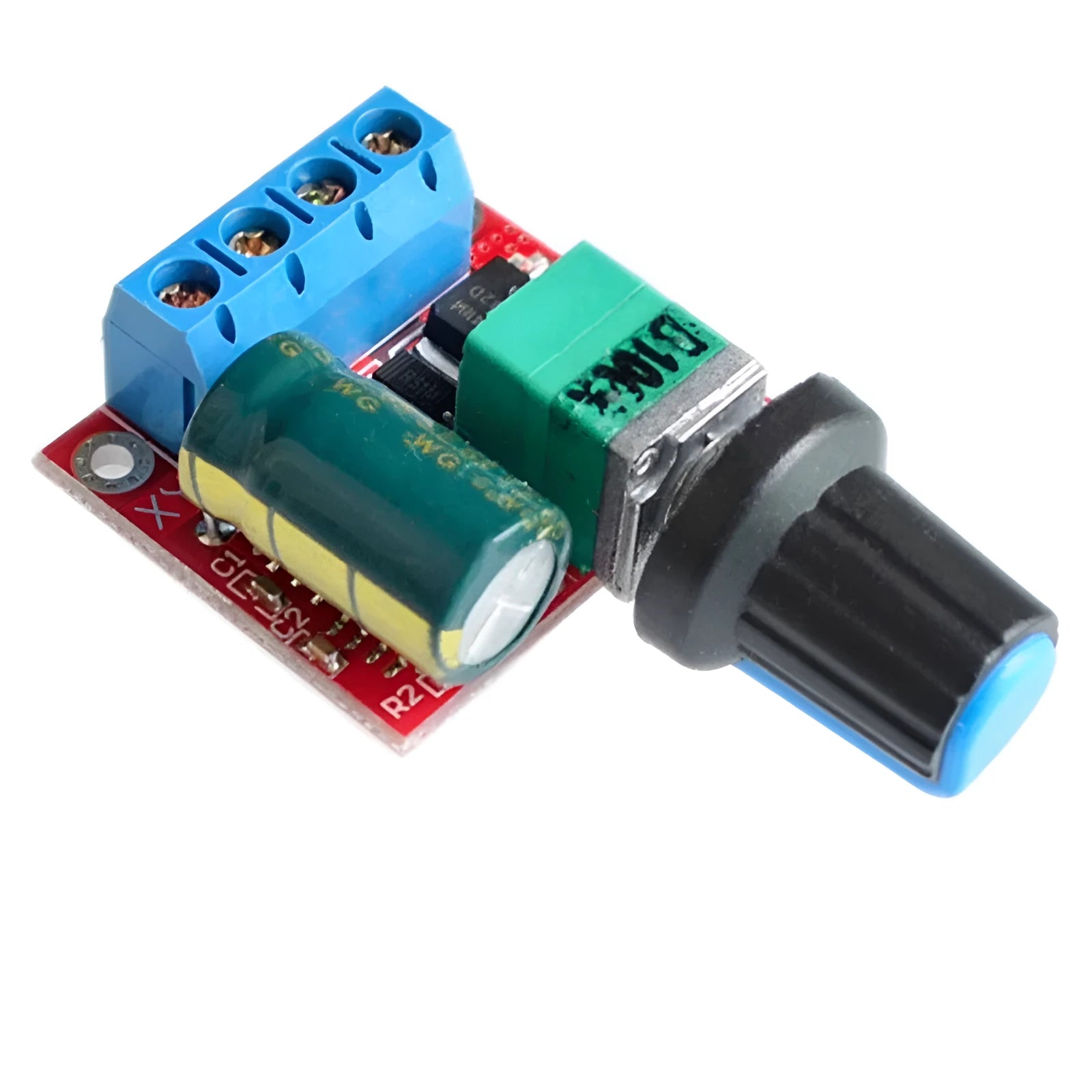

Constructed from electronic components suitable for DC motor control applications, this governor maintains a functional design focused on performance rather than decorative elements. The components are arranged to facilitate the PWM (Pulse Width Modulation) function that enables precise speed regulation through duty cycle adjustment. The potentiometer knob provides manual control over the output duty cycle, allowing users to smoothly adjust motor speeds as needed for their specific application.

Size and Practical Fit

With dimensions of 30mm in length, 26mm in width, and 14mm in height (excluding the adjustment handle), this governor offers a compact footprint that can be easily integrated into space-constrained installations. The small size makes it suitable for incorporation into various projects where space efficiency is important, from robotics applications to small machinery control systems. The design excludes excessive bulk while maintaining the necessary components for effective DC motor speed regulation.

Uses and Placement

This governor finds application in numerous scenarios where DC motor speed control is required, ranging from educational projects to practical implementations in various equipment.

Event or Professional Use

For professional or educational settings, this governor can serve in robotics workshops, engineering demonstrations, or technical training environments where understanding DC motor control principles is valuable. Its straightforward operation makes it suitable for instructional purposes, while its 90W power handling capability allows it to work with motors used in practical applications. The clear voltage and current specifications facilitate proper integration into more complex systems or demonstration setups.

Everyday Home Use

In home workshop or hobbyist applications, this governor can control motors in DIY projects, model-making equipment, or small tools requiring variable speed operation. The 4.5V-35V operating range accommodates various power sources commonly available to hobbyists, from battery packs to benchtop power supplies. The ability to adjust motor speed through a simple potentiometer knob makes it accessible for users without extensive technical expertise while providing the functionality needed for varied project requirements.

Benefits and Buying Value

This governor offers practical advantages for users needing reliable DC motor speed control without unnecessary complexity or excessive cost.

Reuse and Low Maintenance

The governor's design supports repeated use across different projects due to its wide voltage compatibility and straightforward connection requirements. With proper attention to the operating guidelines—particularly regarding DC-only power connection and correct polarity—the governor can provide consistent performance over multiple applications. The absence of complex programming requirements or specialised software dependencies contributes to its reusability across various motor control scenarios.

Why Choose This Product

This governor provides a practical solution for DC motor speed control with clearly defined specifications that help users make informed decisions about compatibility with their specific motors and power sources. The combination of 90W output power, 5A current handling, and compact dimensions offers a balanced set of capabilities for numerous applications. The inclusion of specific operational guidelines helps prevent common connection errors that could damage the unit, supporting reliable performance when used according to the provided instructions.
