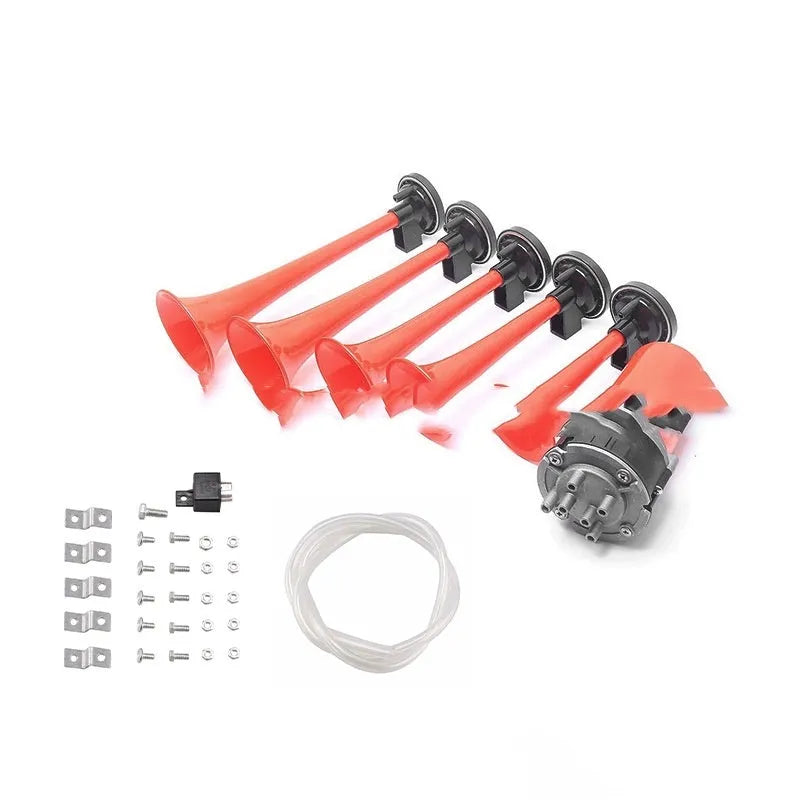

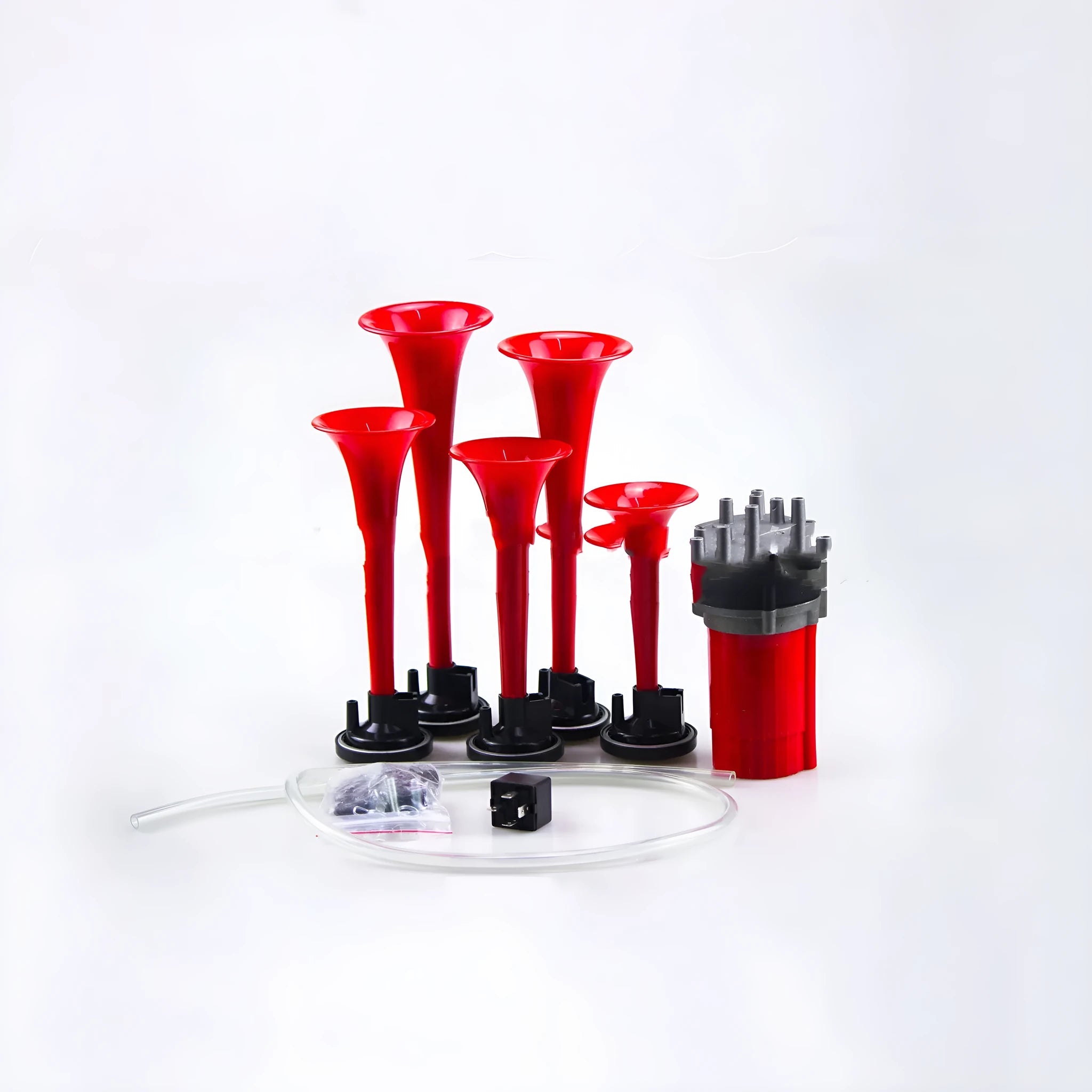

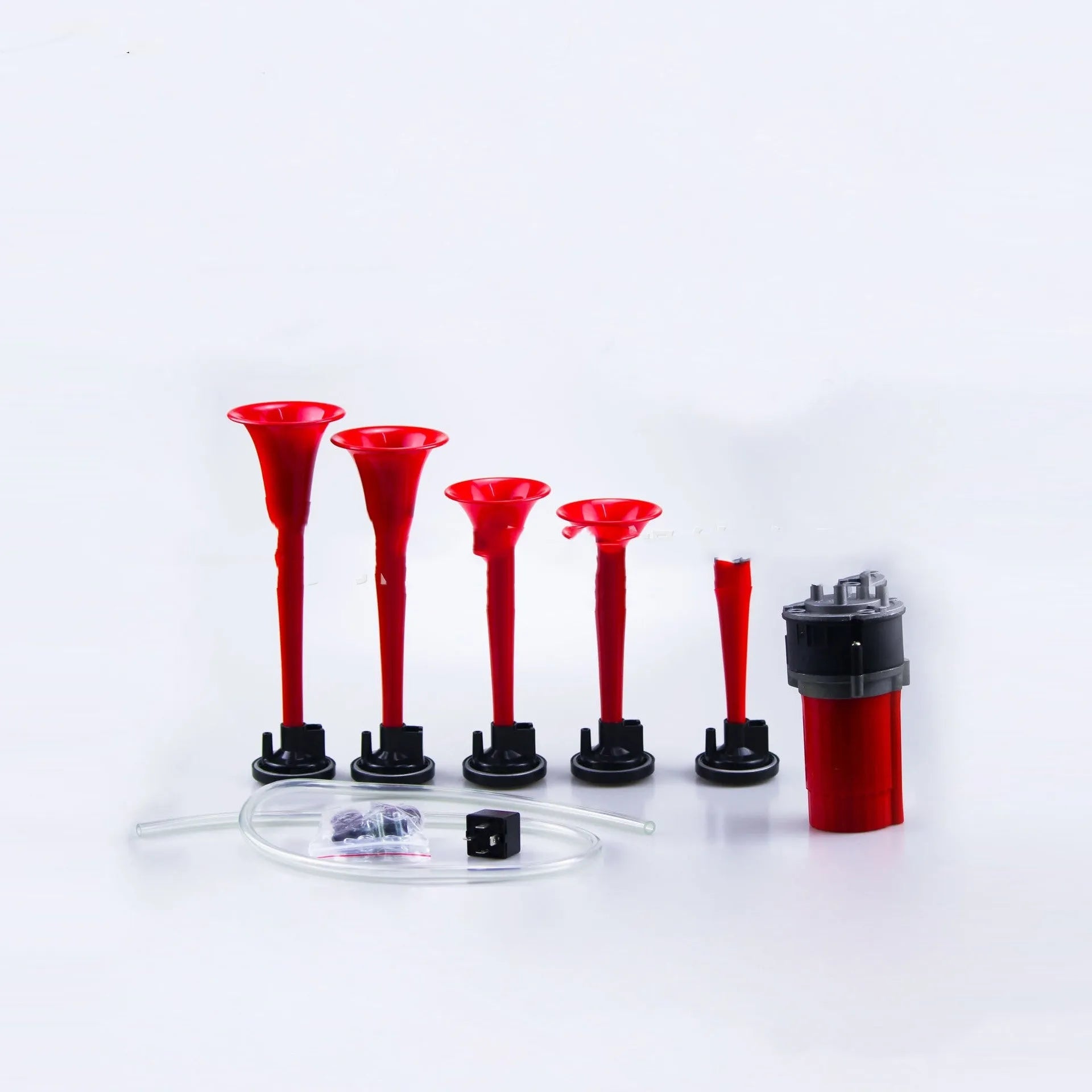

TZ-329 Music Electric Air Horn 5 Tube Musichorn Car Pull - 12V Red Black White with Air Source Compatibility

The TZ-329 five-tube electric air horn from Musichorn is designed for vehicles that already have an air source device on board. Instead of relying on a weak factory horn, this horn uses compressed air directly from your vehicle's air storage tank to produce a loud, distinctive sound that commands attention. It works with any vehicle model, making it a versatile upgrade for trucks, vans, and other commercial vehicles with air systems. The horn operates on a standard 12V electrical supply and is available in three colours: red, white, or black, so you can match your vehicle's existing trim or personal preference.

Features and Construction

This air horn is built around a five-tube configuration that creates a musical horn sound rather than a single monotone blast. The design includes a solenoid valve to control air flow, and the manufacturer specifies a service life of over 100,000 cycles under normal use.

Five-Tube Design

The horn features five separate tubes that each produce a different note, combining to create a chord-like sound that is more noticeable than standard single-tone horns. The multi-tone output helps your vehicle stand out in traffic, giving other drivers a clear audible signal of your presence.

Durable Construction

The speaker set is built to withstand extreme temperatures from -40°C to 80°C, making it suitable for use in both cold winter conditions and hot summer environments. The working pressure range of 0.3-0.9MPa (with an optimum range of 0.42-0.68MPa) ensures the horn functions reliably across typical commercial vehicle air system pressures.

Easy Installation Setup

Installation requires a control relay rated above 10A, and the wiring must follow the specified cross-sectional areas: main power line at least 2.5mm², output line at least 1.5mm², and a good earth connection. These specifications ensure the horn receives sufficient current for consistent performance.

Uses and Placement

This air horn is intended for vehicles that already have an air source installed, such as trucks, buses, and vans with air brake systems. It provides an upgrade to the standard warning sound for professional or personal use.

Commercial Vehicle Use

For drivers of heavy goods vehicles or commercial vans, the TZ-329 horn offers a louder and more distinctive warning signal compared to standard electric horns. Its compatibility with any vehicle model means it can be fitted to most trucks or vans that have an air source, making it a practical replacement or upgrade.

Personal Vehicle Upgrade

Owners of vehicles with an aftermarket air system can also install this horn for a custom sound. The three colour options allow you to choose a finish that complements your vehicle's exterior, and the compact multi-tube design can be mounted in the engine bay or behind the grille.

Benefits and Buying Value

The TZ-329 offers a long service life and straightforward maintenance requirements, making it a practical investment for vehicle operators who rely on a loud and reliable horn.

Long Service Life

The manufacturer rates the horn for over 100,000 cycles, reducing the need for frequent replacements. Regular maintenance, such as draining moisture from the air storage tank and cleaning the solenoid valve filter screen, helps maintain sound quality and prolongs the life of the horn.

Why Choose This Product

If your vehicle already has an air source, this horn provides an easy way to upgrade to a multi-tone sound without major modifications. The specific voltage, pressure, and temperature specifications mean it is engineered for real-world use across a wide range of operating conditions. The availability of three colours gives you flexibility to match your vehicle's look.
