High-Current Double-Break Switch with Light Panel for Water Heater and AC Circuits

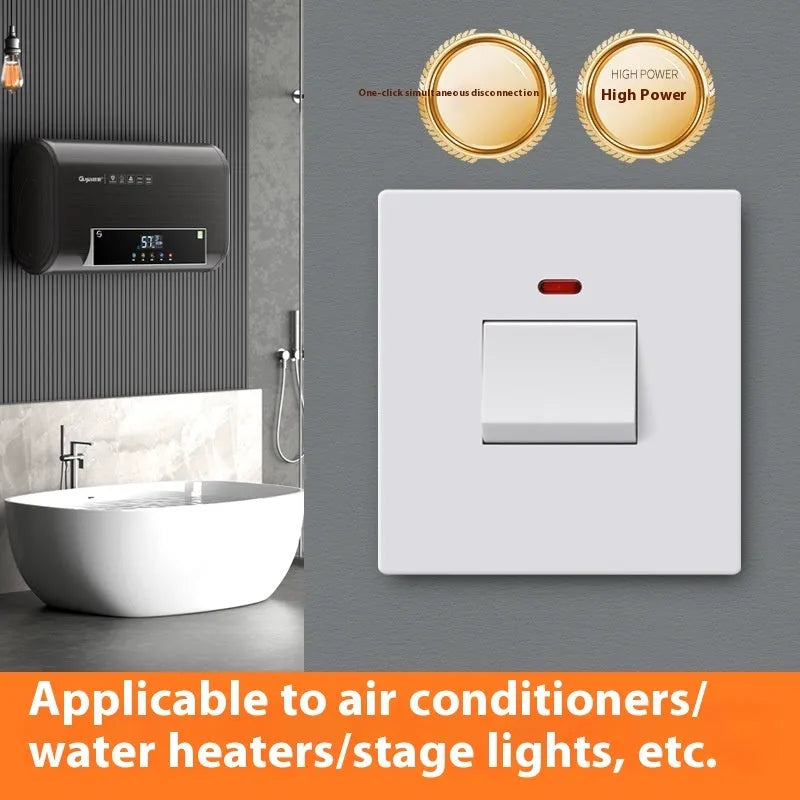

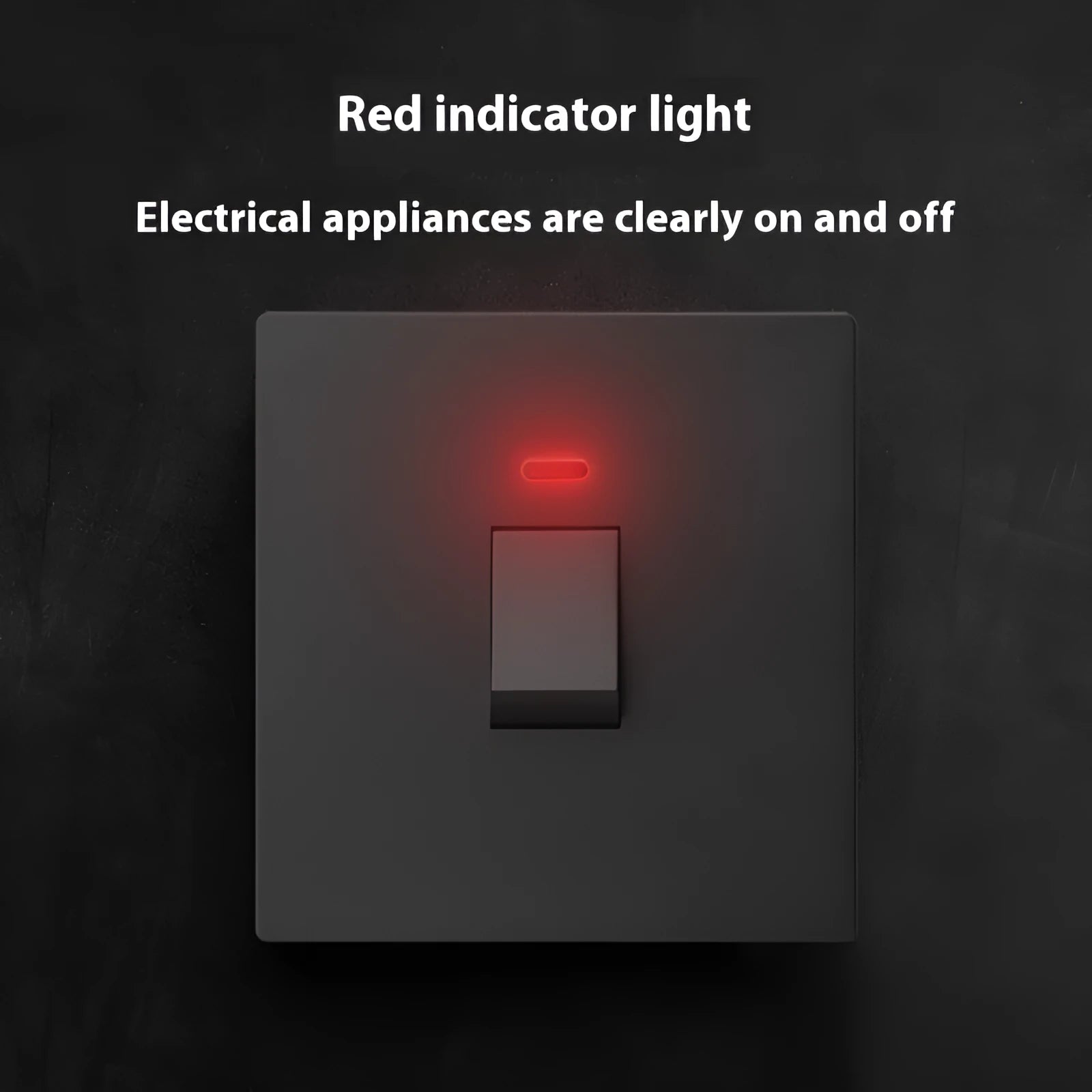

This specialised electrical switch is engineered for applications requiring the reliable control of high-power circuits, such as those feeding water heaters and air conditioning units. Its core function is to provide a safe means of isolation and switching. The product belongs to a curved rack switch or high-power socket series, indicating its intended fitment for structured electrical panels or equipment installations. A key feature is the integrated light panel, which offers immediate visual confirmation of the switch's on or off status, adding a layer of operational clarity. With a choice between 25-ampere and 45-ampere specifications, it caters to a range of electrical load demands commonly found in residential or light commercial settings.

Features and Construction

The switch incorporates several design elements focused on safety and functionality for high-current applications. Its construction centres around a plastic housing, which provides the necessary electrical insulation for safe operation within an enclosure.

Material and Build

The primary construction material is plastic, forming the external casing and internal support structure. This material choice ensures electrical insulation and contributes to the product's overall weight of 128 grams. The design is tailored for integration into curved rack systems or as part of a high-power socket assembly, suggesting a professional or semi-professional installation context rather than a standard domestic wall plate.

Size and Practical Fit

The physical dimensions are not specified in detail beyond the weight. The product's form factor is implied by its series classification as a curved rack switch, which typically conforms to standard industrial rail or panel-mounting sizes. The 3-pole (3P) configuration is a critical specification, meaning it switches three conductive paths simultaneously. This is essential for safely isolating three-phase equipment or providing a complete disconnect for high-power single-phase circuits, such as those for large appliances.

Uses and Placement

This switch is purpose-built for specific electrical control scenarios where standard switches would be inadequate. Its placement is almost exclusively within a dedicated electrical distribution board, equipment control panel, or installed rack system.

Event or Professional Use

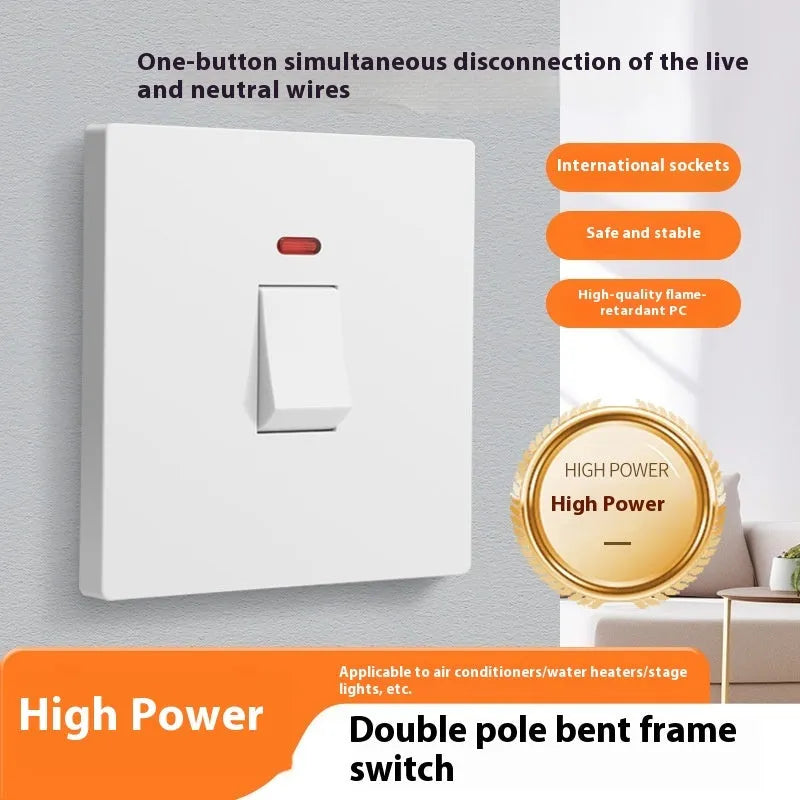

In professional or installation contexts, this switch is ideal for electricians upgrading or building control panels for systems like commercial water heaters, HVAC units, or industrial machinery requiring a localised, high-current disconnect. The double-break mechanism increases safety by creating two gaps in the circuit, which can help extinguish arcs more effectively than a single-break design when switching under load. The light panel is particularly useful for maintenance personnel to quickly verify if a circuit is live or safely isolated from a distance.

Everyday Home Use

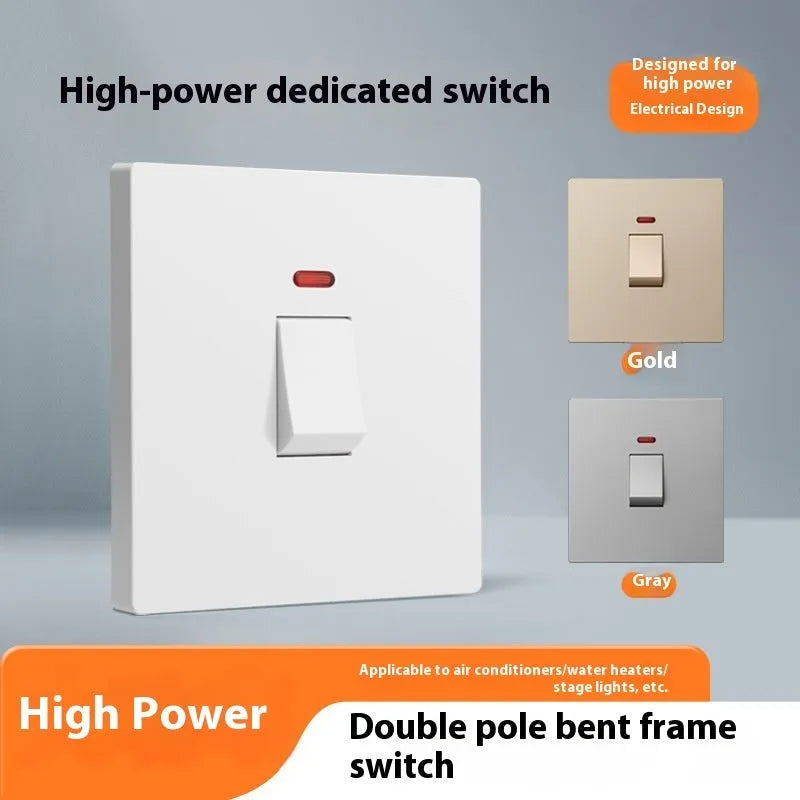

For advanced DIY or home workshop setups, this switch could be integrated into a custom power distribution unit for heavy-duty tools or a dedicated circuit for a domestic hot tub or large air conditioning system. The availability in gold, grey, or white finishes allows it to be matched with the aesthetic of other components within a custom panel. It provides a more robust and visible switching point compared to a standard circuit breaker alone.

Benefits and Buying Value

The value of this switch lies in its specialised design for a specific, safety-critical task. It is not a general-purpose accessory but a component chosen for its technical specifications and built-in features.

Reuse and Low Maintenance

As a solid-state electrical component with no moving parts beyond the switch mechanism itself, it is designed for long-term reliability within a fixed installation. The plastic housing resists corrosion and, when installed in a dry, protected panel environment, should require minimal to no maintenance throughout its service life. Its value is realised through dependable performance over time rather than through disposability.

Why Choose This Product

You would choose this product when you need a verified, high-current switching solution with a clear status indicator. The concrete choice between 25A and 45A ratings allows for precise matching to your circuit's amperage, which is crucial for safety and compliance. The double-break design offers an added layer of protection when interrupting inductive loads from motors or heating elements. Ultimately, it provides a dedicated, functional control point for demanding electrical circuits where standard switches are not rated or suitable.
